Side-by-Sideutility
Arctic Cat · 2027

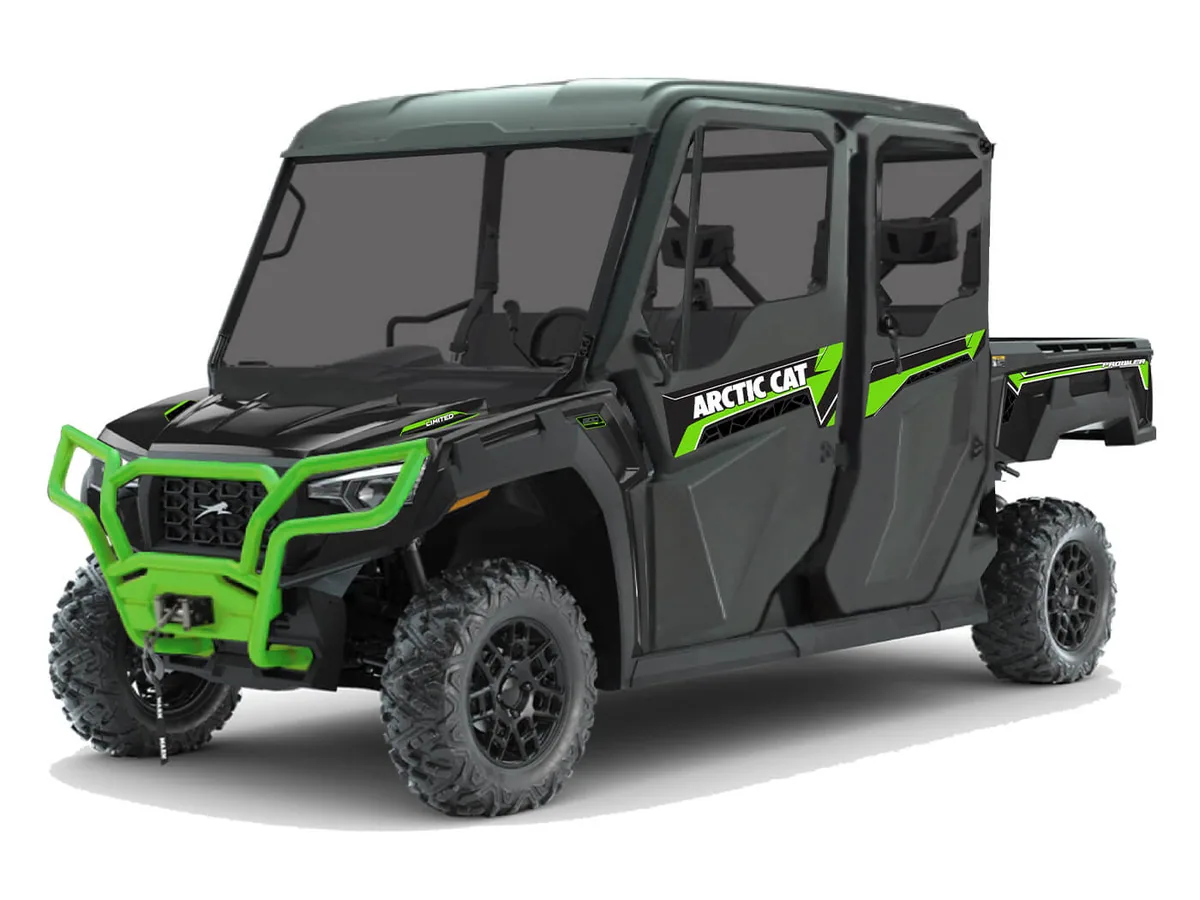

Prowler 800 Crew
$22,299 - $31,299
2 trims available
6-seat crew hauler for work crews
812cc
Engine
50 HP
Power
6
Seats
2WD/4WD
Drive
The Arctic Cat Prowler Crew adds 6-passenger capability to the Prowler platform with an ultra-quiet 812cc triple and 2,000 lb towing.
Key Features
- 6-seat crew configuration
- Ultra-quiet 812cc EFI 3-cylinder engine
- 2,000 lb towing capacity
- 12.5" ground clearance
- 4,500 lb WARN winch with synthetic rope
Available Trims
Base

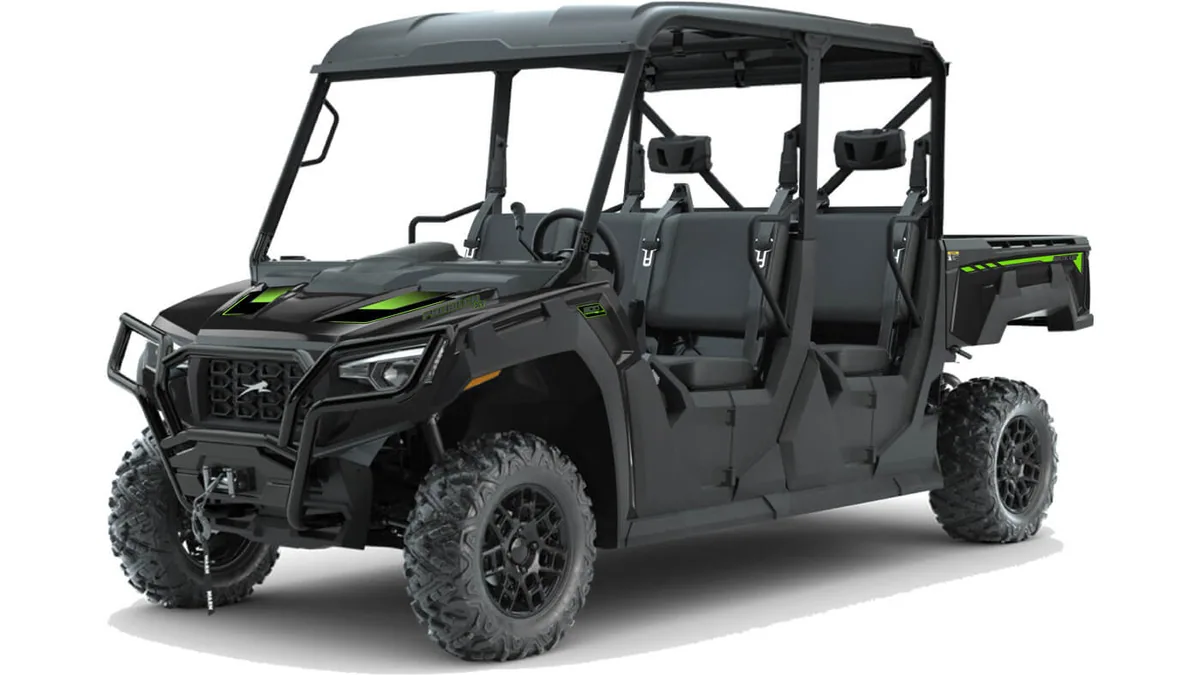

XT
$22,299
Standard configuration

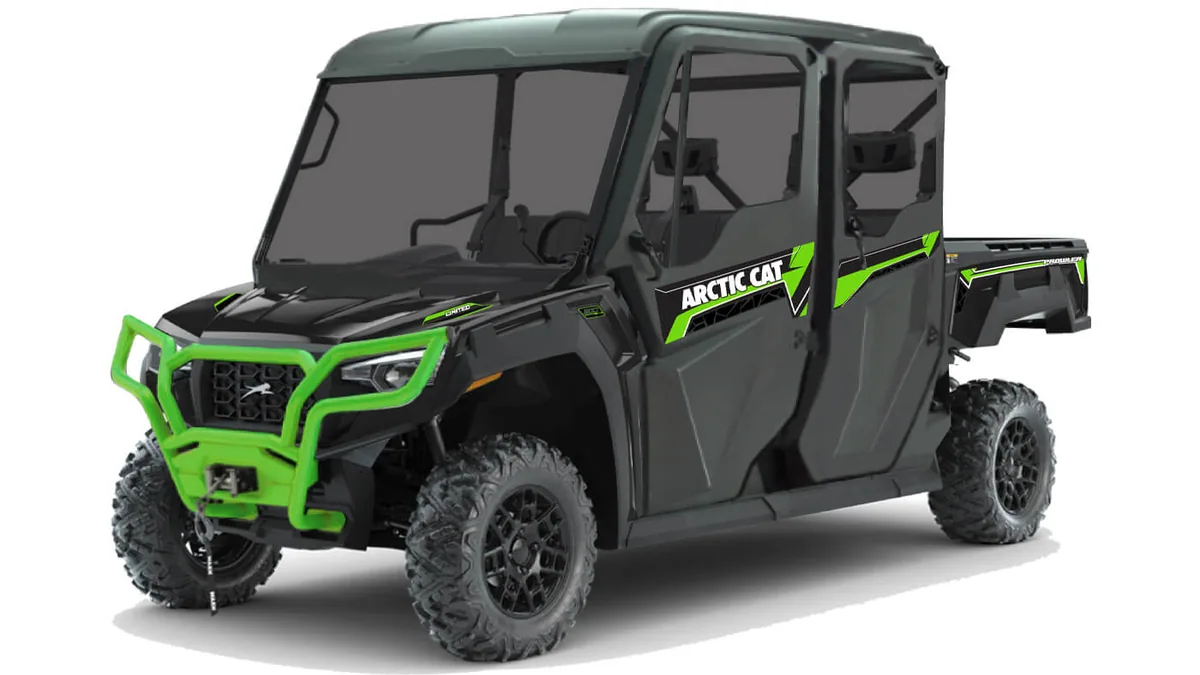

Limited
$31,299+$9,000
- Full cab with heat
- Arctic Cat G8 display
Full Specifications
Engine & Drivetrain
Displacement812cc
ConfigurationInline 3
Cylinders3
Horsepower50 HP
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSelectable 2WD/4WD with rear differential lock
Drive Type2WD/4WD
Power SteeringYes (EPS)
Climate ControlHeat (cabbed trims)
Suspension
FrontIndependent Double A-Arm
RearIndependent Double A-Arm
Front Travel10"
Rear Travel10"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires27x9-14
Rear Tires27x11-14
Dimensions
Length152"
Width60"
Height77"
Wheelbase115"
Ground Clearance12.5"
Weight & Capacity
Dry Weight1,992 lbs
Seating6 passengers
Fuel Capacity9 gal
Towing Capacity2,000 lbs
Payload Capacity1,200 lbs
Cargo BedYes
Bed Capacity600 lbs
Bed Dimensions (L×W×H)40.5″ × 54″ × 11.5″
Ownership
Factory Warranty12 months
Accessory Mount SystemSPEEDRACK
