Photo may show a prior model year or a different trim or colorway.
ATVwork
Can-Am · 2026

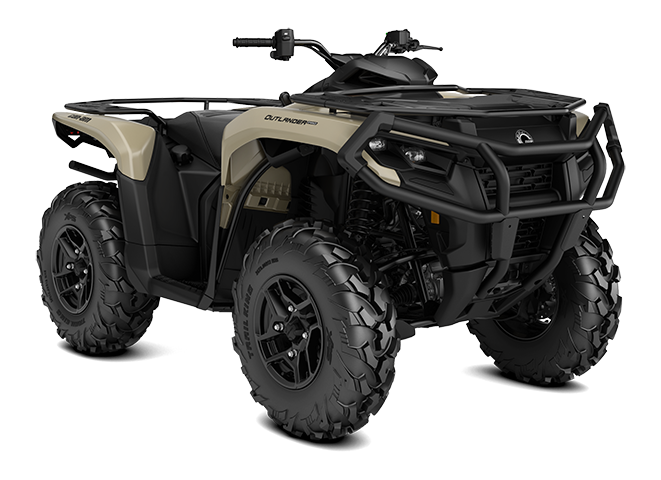

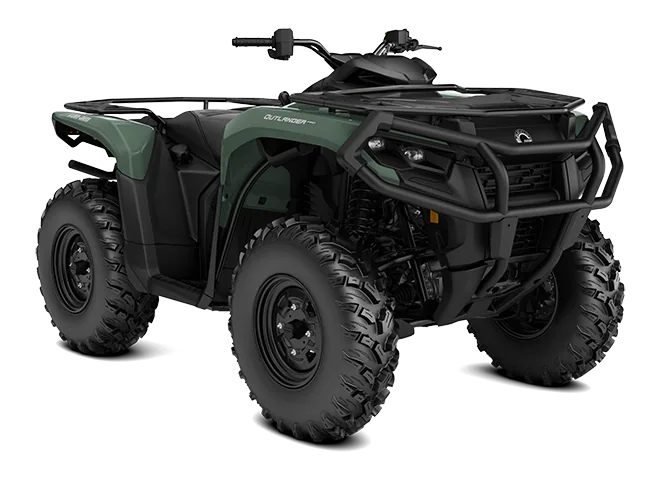

Outlander PRO HD5
$7,799 - $9,299
2 trims available
Built tough for serious work
650cc
Engine
40 HP
Power
1
Rider
2WD/4WD
Drive
The Can-Am Outlander PRO HD5 is a work-focused utility ATV with 40 HP, 1,830 lb towing, heavy-duty bumpers, full skid plate, and a pDrive CVT built for long maintenance intervals.
Key Features
- Rotax 650cc single-cylinder engine with 40 HP
- pDrive CVT with work calibration
- Heavy-duty front bumper, rear bumper, full skid plate
- 1,830 lb towing capacity
- Speed limiter standard
Available Trims
Base
Base
$7,799
Standard configuration
XU
$9,299+$1,500
- Tri-Mode Dynamic Power Steering
- Visco-4Lok front differential
- Intelligent Engine Braking
- Cast aluminum wheels
Full Specifications
Engine & Drivetrain
Displacement650cc
ConfigurationSingle
Cylinders1
Horsepower40 HP
Torque37 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSelectable 2WD/4WD with Visco-Lok auto-locking front differential
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontDouble A-Arm
RearDouble A-Arm
Front Travel9.75"
Rear Travel10.25"
Brakes & Tires
Front BrakesDual Hydraulic Disc
Rear BrakesHydraulic Disc
Front Tires26x8-12
Rear Tires26x10-12
Dimensions
Length89.9"
Width48.8"
Height48.2"
Wheelbase53"
Ground Clearance13"
Weight & Capacity
Dry Weight816 lbs
Seating1 rider
Fuel Capacity5.1 gal
Towing Capacity1,830 lbs
Front Rack Capacity120 lb
Rear Rack Capacity240 lb
Ownership
Factory Warranty6 months
Accessory Mount SystemLinQ
