Photo may show a prior model year or a different trim or colorway.
Side-by-SideutilityNew for 2027
CFMoto · 2027
UForce 800 XL
$13,499
2 trims available
4-seat utility crew with V-Twin power
800cc
Engine
63 HP
Power
4
Seats
2WD/4WD
Drive
The CFMoto UForce 800 XL is a 4-seat crew utility with 63 HP V-Twin power, a 660 lb dump bed, and a 4,500 lb winch.
Key Features
- 800cc V-Twin engine with 63 HP
- 4-seat crew configuration
- Nitrogen-assisted dump bed (660 lbs)
- 4,500 lb winch with synthetic rope
- Locking rear differential
Available Trims
Base
Base
$13,499
Standard configuration

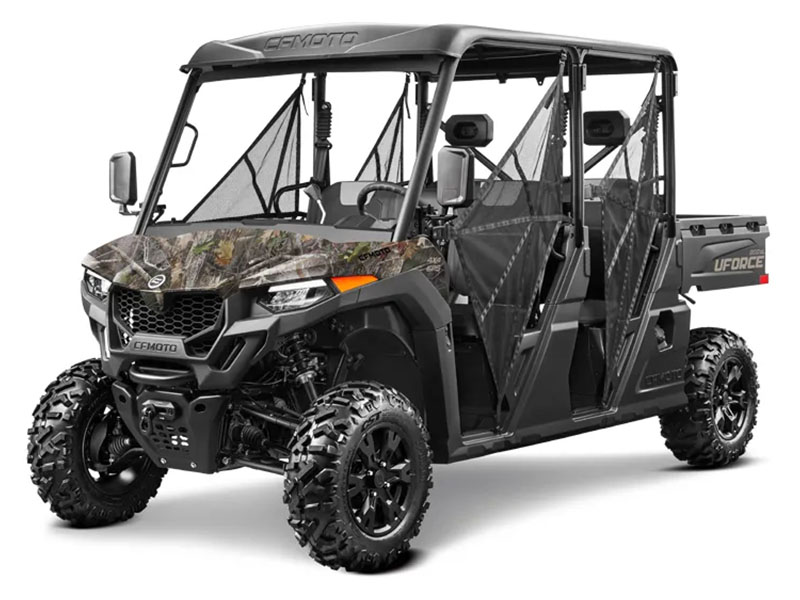

TrueTimber Kanati Camo
$13,499
- TrueTimber Kanati camo (no-cost color option)
Full Specifications
Engine & Drivetrain
Displacement800cc
ConfigurationV-Twin
Cylinders2
Horsepower63 HP
Torque51 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSelectable 2WD/4WD with locking front differential
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontHigh-Clearance A-Arm
RearDouble A-Arm
Front Travel8.9"
Rear Travel8.9"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires27x9-14
Rear Tires27x11-14
Dimensions
Length143"
Width60"
Height79"
Wheelbase109.1"
Ground Clearance11.8"
Weight & Capacity
Dry Weight1,629 lbs
Seating4 passengers
Fuel Capacity10.5 gal
Towing Capacity1,500 lbs
Payload Capacity1,499 lbs
Cargo BedYes
Bed Capacity660 lbs
Ownership
Factory Warranty12 months
Accessory Mount SystemCFConnect
