Side-by-Sideutility
Honda · 2026
Pioneer 520
$10,999
Compact side-by-side for tight spaces
518cc
Engine
N/A
Power
2
Seats
2WD/4WD
Drive

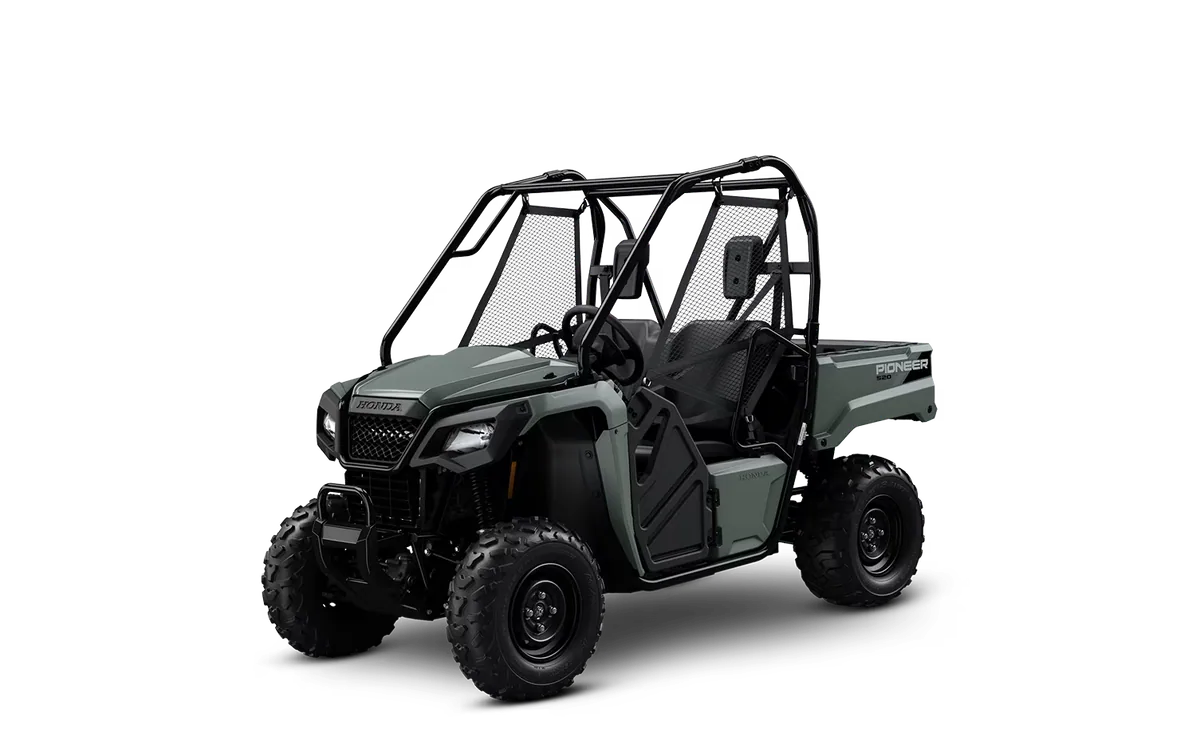

The Honda Pioneer 520 is a compact, 50-inch-wide side-by-side with a 518cc engine and 5-speed transmission with AT/MT modes. New for 2026: 23% faster top speed.
Key Features
- 50-inch width fits narrow trails
- 518cc engine with 5-speed AT/MT modes and paddle shifting
- 1,000 lb towing capacity
- Steel tilt bed with 450 lb capacity
- 23% faster top speed for 2026 (revised gear ratios)
Available Trims
Base
Base
$10,999
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement518cc
ConfigurationSingle
Cylinders1
HorsepowerNot published by manufacturer
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontIndependent Double Wishbone
RearIndependent Double Wishbone
Front Travel5.8"
Rear Travel5.9"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires24x8-12
Rear Tires24x10-12
Dimensions
Length105"
Width50"
Height71.7"
Wheelbase73"
Ground Clearance8.5"
Weight & Capacity
Curb Weight1,060 lbs
Seating2 passengers
Fuel Capacity4.1 gal
Towing Capacity1,000 lbs
Cargo BedYes
Bed Capacity450 lbs
Ownership
Factory Warranty12 months
Accessory Mount SystemPro-Connect
