Side-by-Sidework
John Deere · 2026

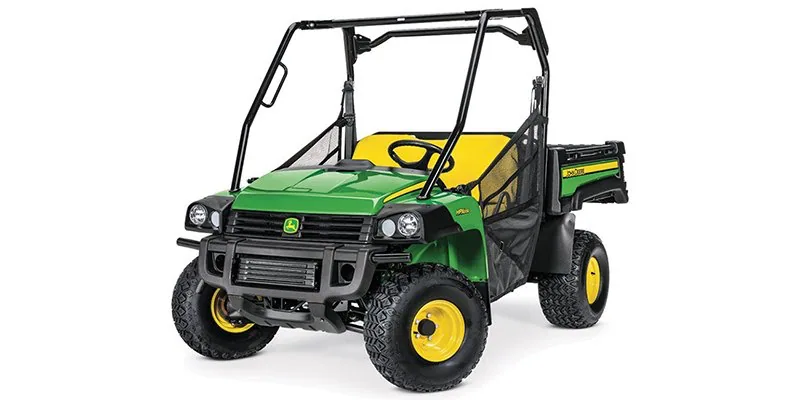

Gator HPX615E
$15,599
Heavy-duty gasoline work utility vehicle
617cc
Engine
20 HP
Power
2
Seats
4WD
Drive
The John Deere Gator HPX615E is a work-focused utility vehicle with a 617cc liquid-cooled gasoline engine, 4WD, 1,000 lb cargo bed, and 1,300 lb towing capacity. Built for demanding work applications on farms and commercial properties.
Key Features
- 20 HP 617cc 2-cylinder liquid-cooled gasoline engine
- Standard 4WD with electronic engagement
- 1,000 lb cargo bed capacity (16.4 cu ft)
- 1,300 lb towing capacity
- 1,400 lb payload capacity
- No power steering
- Hydraulic disc brakes
- Two-speed CVT with high/low range
Available Trims
Base
HPX615E
$15,599
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement617cc
ConfigurationInline Twin
Cylinders2
Horsepower20 HP
Fuel InjectionNo
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive Type4WD
Power SteeringNo
Suspension
FrontIndependent MacPherson Strut
RearSemi-Independent Coil-Over Shock
Front Travel5.2"
Rear Travel3.5"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires24x9.5-10
Rear Tires24x10.5-10
Dimensions
Length119"
Width58.5"
Height73.5"
Wheelbase75.2"
Ground Clearance6"
Weight & Capacity
Dry Weight1,500 lbs
Seating2 passengers
Fuel Capacity5.3 gal
Towing Capacity1,300 lbs
Payload Capacity1,400 lbs
Cargo BedYes
Bed Capacity1,000 lbs
