Photo may show a prior model year or a different trim or colorway.
Side-by-Sidework
John Deere · 2026

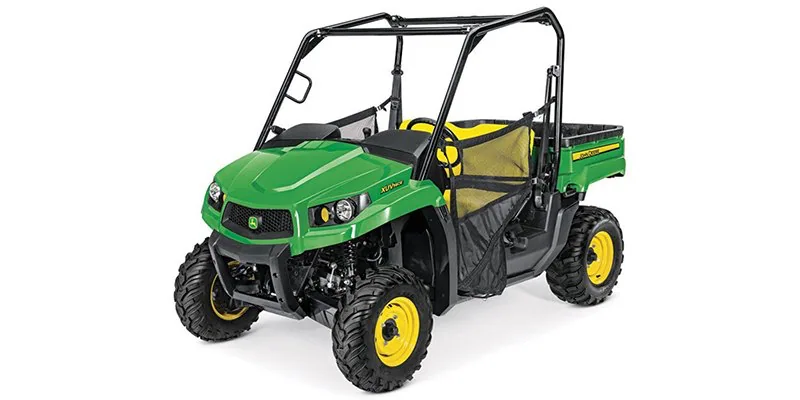

Gator XUV560E
$13,299 - $15,299
2 trims available
Affordable mid-size crossover utility vehicle
570cc
Engine
16 HP
Power
2
Seats
2WD/4WD
Drive
The John Deere Gator XUV560E is the entry-level mid-size crossover utility vehicle with a 570cc V-twin air-cooled engine producing 16 HP. Features selectable 4WD and fully independent suspension. Also available in 4-passenger S4 configuration.
Key Features
- 16 HP 570cc V-twin air-cooled gasoline engine
- 28 mph top speed
- No power steering (manual steering)
- 1,500 lb towing capacity
- 500 lb cargo bed capacity
- Fully independent 4-wheel suspension
- Selectable 4WD with locking rear differential
- 4-passenger S4 version available
Available Trims
Base
560E (2-Passenger)
$13,299
- 2-passenger bench
- Steel wheels

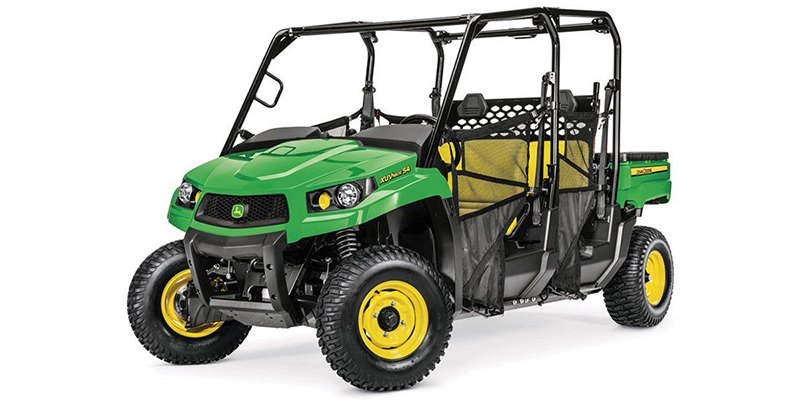

560E S4 (4-Passenger)
$15,299+$2,000
- 4-passenger seating
- Convertible cargo rack
- Extended wheelbase
Full Specifications
Engine & Drivetrain
Displacement570cc
ConfigurationV-Twin
Cylinders2
Horsepower16 HP
Fuel InjectionNo
CoolingAir
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSelectable 4WD with auto-locking front and hand-operated rear differential lock
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontDual A-Arm Independent with Coil-Over Shocks
RearIndependent with Lower A-Arm and Upper Camber Link
Front Travel8"
Rear Travel8"
Brakes & Tires
Front BrakesVentilated Stainless Steel Disc
Rear BrakesVentilated Stainless Steel Disc
Front Tires25x8-12
Rear Tires25x10-12
Dimensions
Length113"
Width56.5"
Height73.5"
Wheelbase72.8"
Ground Clearance10.5"
Weight & Capacity
Dry Weight1,259 lbs
Curb Weight1,259 lbs
Seating2 passengers
Fuel Capacity4.9 gal
Towing Capacity1,500 lbs
Payload Capacity900 lbs
Cargo BedYes
Bed Capacity500 lbs
Bed Dimensions (L×W×H)32.3″ × 47.6″ × 11.7″
Ownership
Factory Warranty12 months
Warranty Notes12 months / 1,000 hours
