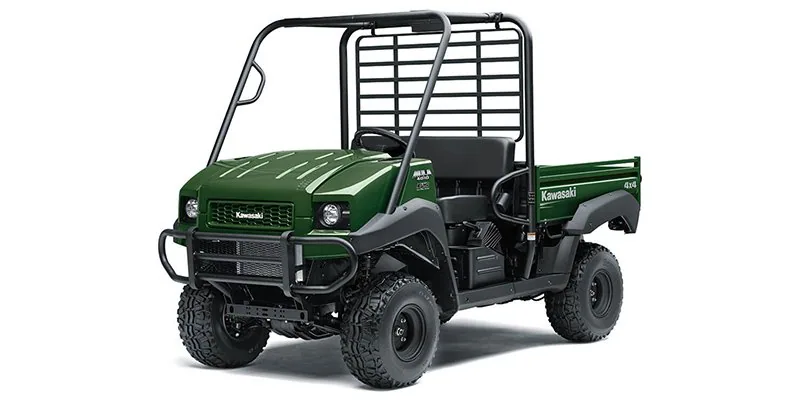

Photo may show a prior model year or a different trim or colorway.
Side-by-Sidework
Kawasaki · 2027
Mule 4010 Trans4x4
$12,799 - $13,299
2 trims available
Convertible 2-to-4 passenger work mule
617cc
Engine
N/A
Power
4
Seats
2WD/4WD
Drive
The Kawasaki Mule 4010 Trans4x4 features the Trans Cab system that converts from a 2-passenger/full-bed to a 4-passenger/short-bed configuration without tools. Powered by a 617cc V-Twin with EPS standard.
Key Features
- 617cc V-Twin engine with EPS standard
- Trans Cab system: 2- or 4-passenger in minutes
- Selectable 2WD/4WD with differential lock
- 1,200 lb towing capacity
- Steel cargo bed with up to 800 lb capacity
Available Trims
Base
Base
$12,799
Standard configuration
Camo
$13,299+$500
- TrueTimber Strata camo bodywork
Full Specifications
Engine & Drivetrain
Displacement617cc
ConfigurationV-Twin
Cylinders2
HorsepowerNot published by manufacturer
Torque35 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSelectable 2WD/4WD with dual-mode rear differential lock
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontMacPherson Strut
RearSwingarm with Dual Shocks
Front Travel3.9"
Rear Travel2.8"
Brakes & Tires
Front BrakesSealed Hydraulic Drum
Rear BrakesSealed Hydraulic Drum
Front Tires25x8-12
Rear Tires25x10-12
Dimensions
Length114.6"
Width58.5"
Height74.8"
Wheelbase85.2"
Ground Clearance7.1"
Weight & Capacity
Dry Weight1,522 lbs
Curb Weight1,588 lbs
Seating4 passengers
Fuel Capacity6.3 gal
Towing Capacity1,200 lbs
Payload Capacity800 lbs
Cargo BedYes
Bed Capacity800 lbs
Bed Dimensions (L×W×H)50.4″ × 47.6″ × 11.2″
Ownership
Factory Warranty36 months
Accessory Mount SystemKQR
