Photo may show a prior model year or a different trim or colorway.
Side-by-SideutilityNew for 2027
Polaris · 2027

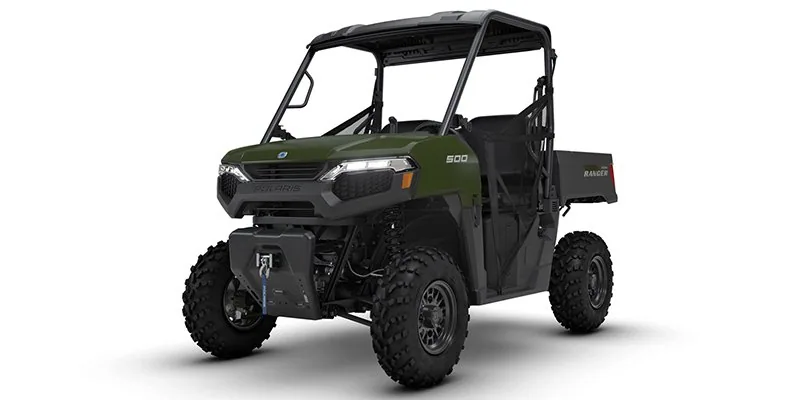

Ranger 500
$9,999
Entry-level utility at a great value
567cc
Engine
28 HP
Power
2
Seats
2WD/4WD
Drive
The Polaris Ranger 500 is a new entry-level utility side-by-side with a 567cc engine producing 28 HP, 1,500 lb towing capacity, and a 500 lb cargo bed for dependable work performance.
Key Features
- 28 HP Single-Cylinder SOHC engine
- 1,500 lb towing capacity
- 500 lb bed capacity
- On-Demand 2WD/4WD
- 9"/10" suspension travel
Available Trims
Base
Base
$9,999
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement567cc
ConfigurationSingle-Cylinder SOHC
Cylinders1
Horsepower28 HP
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemAWD with Auto-Locking Front Drive and VersaTrac Turf Mode
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontMacPherson Strut
RearDual A-Arm IRS
Front Travel9"
Rear Travel10"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires25x8-12
Rear Tires25x10-12
Dimensions
Length110"
Width58.5"
Height74.8"
Wheelbase73.2"
Ground Clearance10"
Weight & Capacity
Dry Weight1,155 lbs
Seating2 passengers
Fuel Capacity9.5 gal
Towing Capacity1,500 lbs
Payload Capacity999 lbs
Cargo BedYes
Bed Capacity500 lbs
Bed Dimensions (L×W×H)32.6″ × 46.2″ × 11.3″
Ownership
Factory Warranty12 months
Accessory Mount SystemLock & Ride
Ready to learn more?
Visit the manufacturer website for the latest details and pricing.
