Photo may show a prior model year or a different trim or colorway.

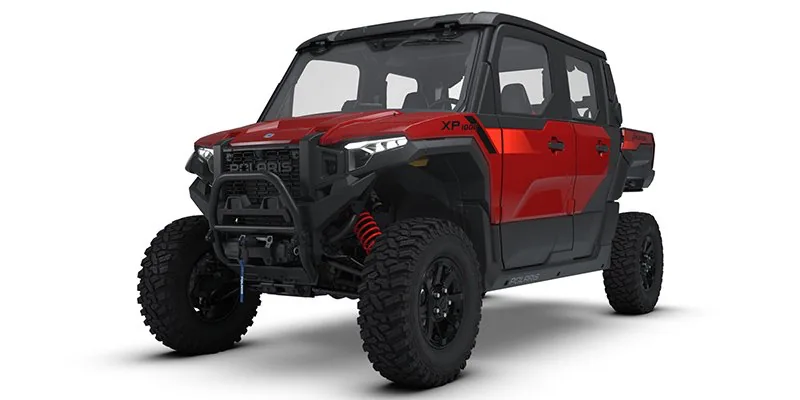

Side-by-Siderecreation
Polaris · 2027
Xpedition XP 5 NorthStar
$45,499
5-seat adventure with factory climate control
999cc
Engine
114 HP
Power
5
Seats
2WD/4WD
Drive
The Polaris Xpedition XP 5 NorthStar seats five in a sealed cab with factory heat and AC, powered by 114 HP, with 15 inches of rear travel and a 600 lb dump bed.
Key Features
- 114 HP ProStar Gen 2 Engine
- 5-passenger seating with 60/40 flip-up rear bench
- NorthStar cab with factory heat and AC
- FOX 2.0/2.5 Podium QS3 shocks
- 14" / 15" suspension travel
- 12.5 gallon fuel tank, 200+ mile range
- 2,000 lb towing capacity
- JBL Trail Pro 4100 audio system
Available Trims
Base
NorthStar
$45,499
- Sealed cab with locking doors
- Factory heating and air conditioning
- Power windows
- 60/40-split flip-up rear bench seat
- JBL Trail Pro 4100 audio with 10" subwoofer
- Rear view camera
- Tilt dump bed
Full Specifications
Engine & Drivetrain
Displacement999cc
ConfigurationParallel Twin
Cylinders2
Horsepower114 HP
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemOn-demand true AWD/2WD with VersaTrac Turf Mode
Drive Type2WD/4WD
Power SteeringYes (EPS)
Climate ControlHeat + A/C (cabbed trims)
Suspension
FrontDual A-Arm
RearDual A-Arm IRS
Front Travel14"
Rear Travel15"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires30x10-15
Rear Tires30x11-15
Dimensions
Length152.5"
Width64"
Height74.9"
Wheelbase117"
Ground Clearance14"
Weight & Capacity
Dry Weight2,736 lbs
Seating5 passengers
Fuel Capacity12.5 gal
Towing Capacity2,000 lbs
Payload Capacity1,160 lbs
Cargo BedYes
Bed Capacity600 lbs
Bed Dimensions (L×W×H)30.3″ × 47.3″ × 13.4″
Ownership
Factory Warranty12 months
Accessory Mount SystemLock & Ride
