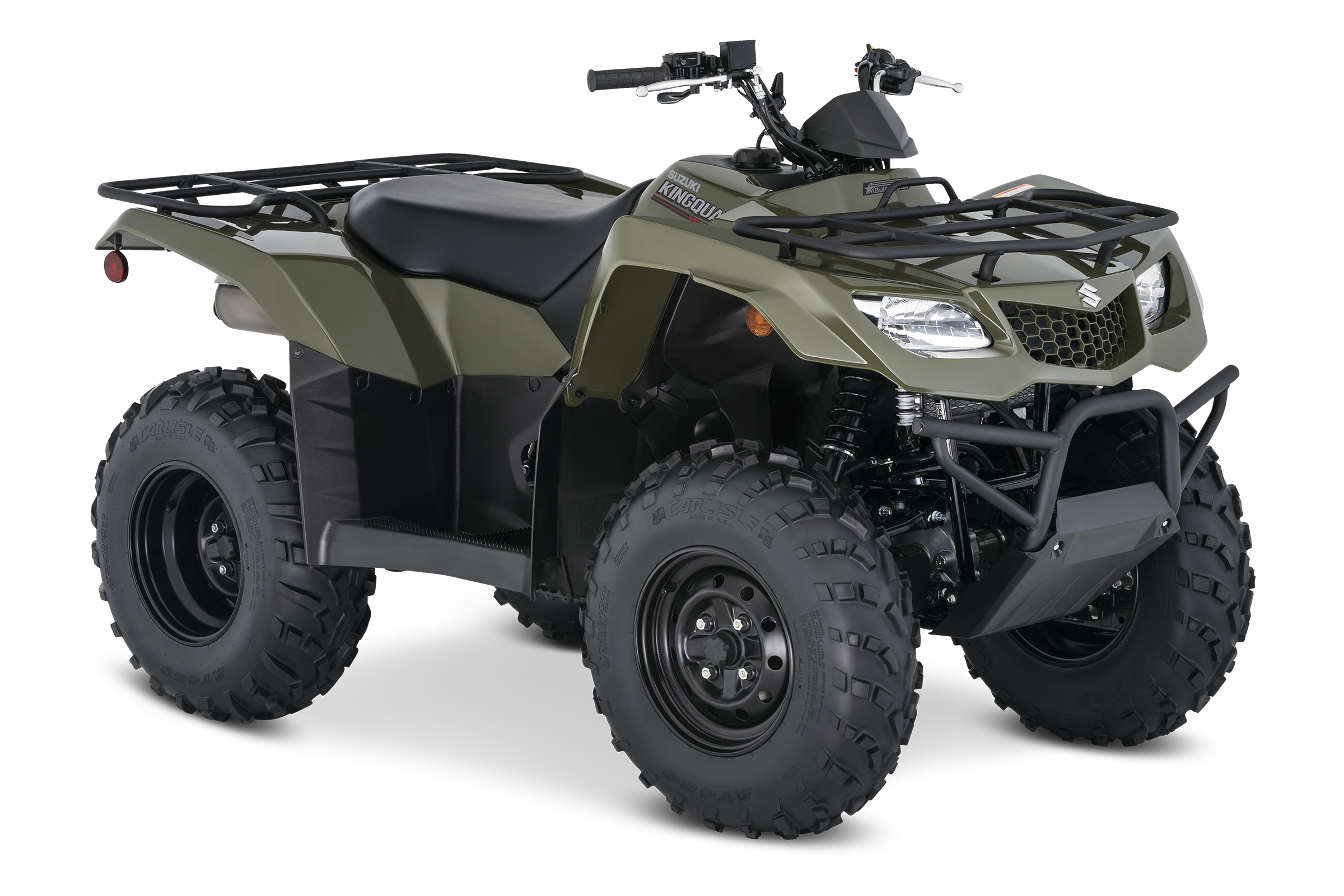

Photo may show a prior model year or a different trim or colorway.
ATVutility
Suzuki · 2026
KingQuad 500AXi
$8,379 - $10,679
5 trims available
Proven performance for work and trail riding
493cc
Engine
38 HP
Power
1
Rider
2WD/4WD
Drive
The Suzuki KingQuad 500AXi is a capable mid-size utility ATV with a 493cc fuel-injected engine, selectable 4WD, and 1,322 lb towing capacity.
Key Features
- 493cc fuel-injected liquid-cooled engine
- Selectable 2WD/4WD with diff lock
- 1,322 lb towing capacity
- Electric Power Steering available
- QuadMatic CVT with engine braking
Available Trims

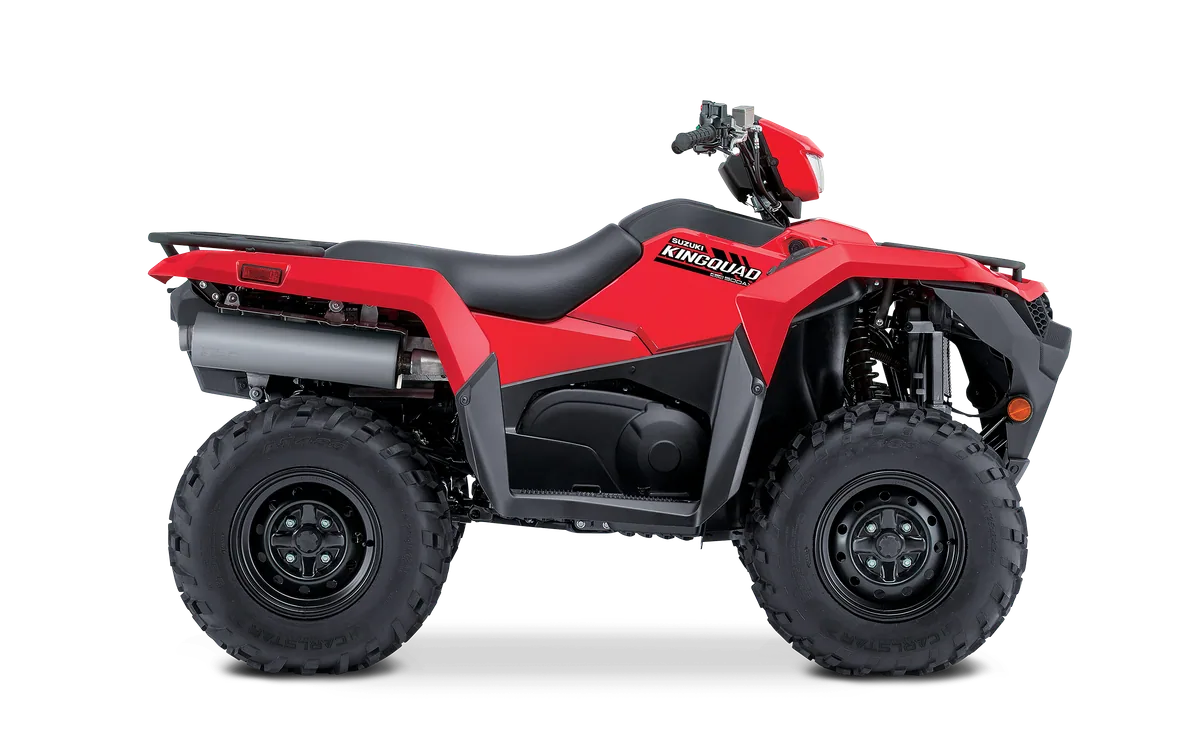

Base
Base
$8,379
Standard configuration

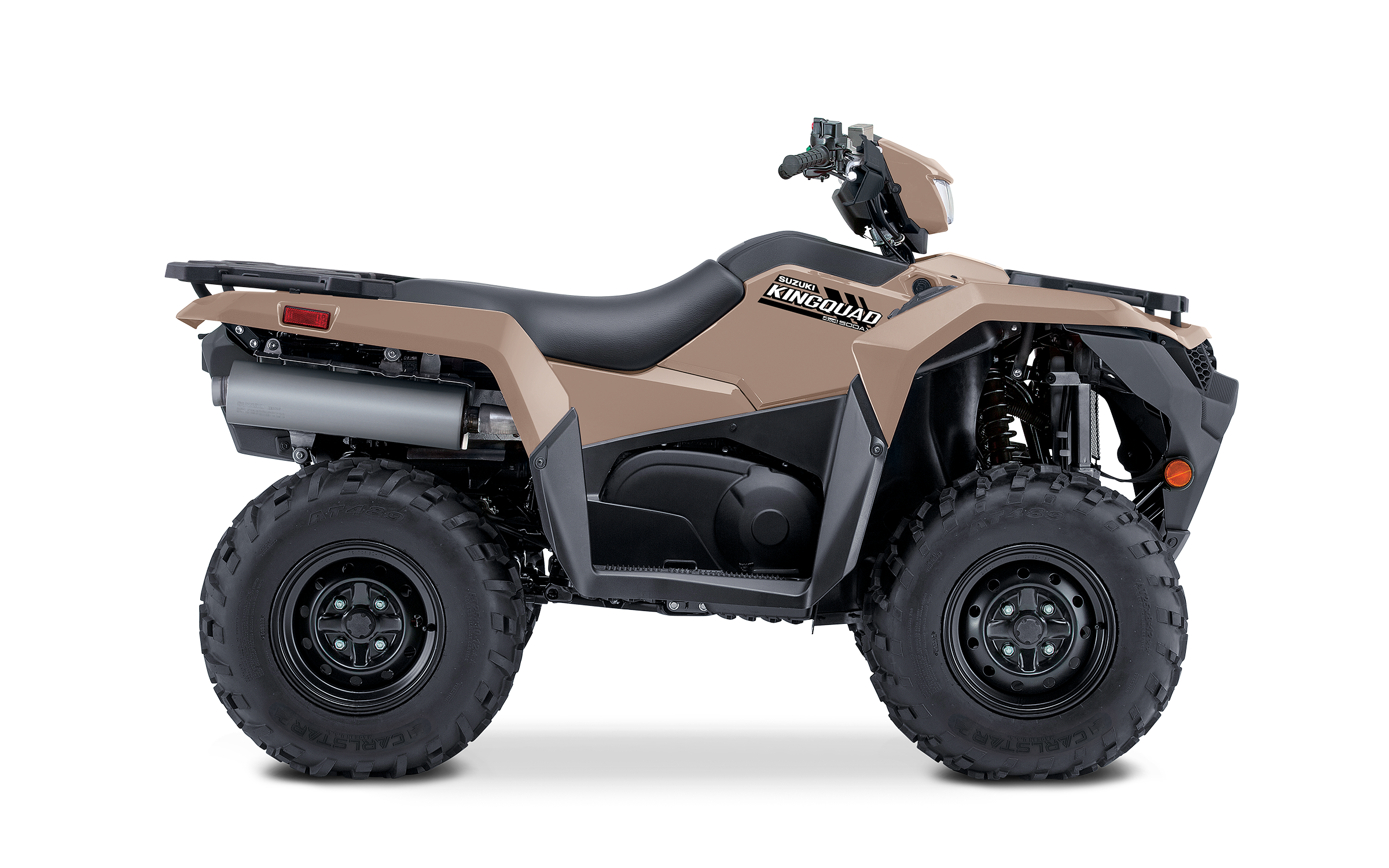

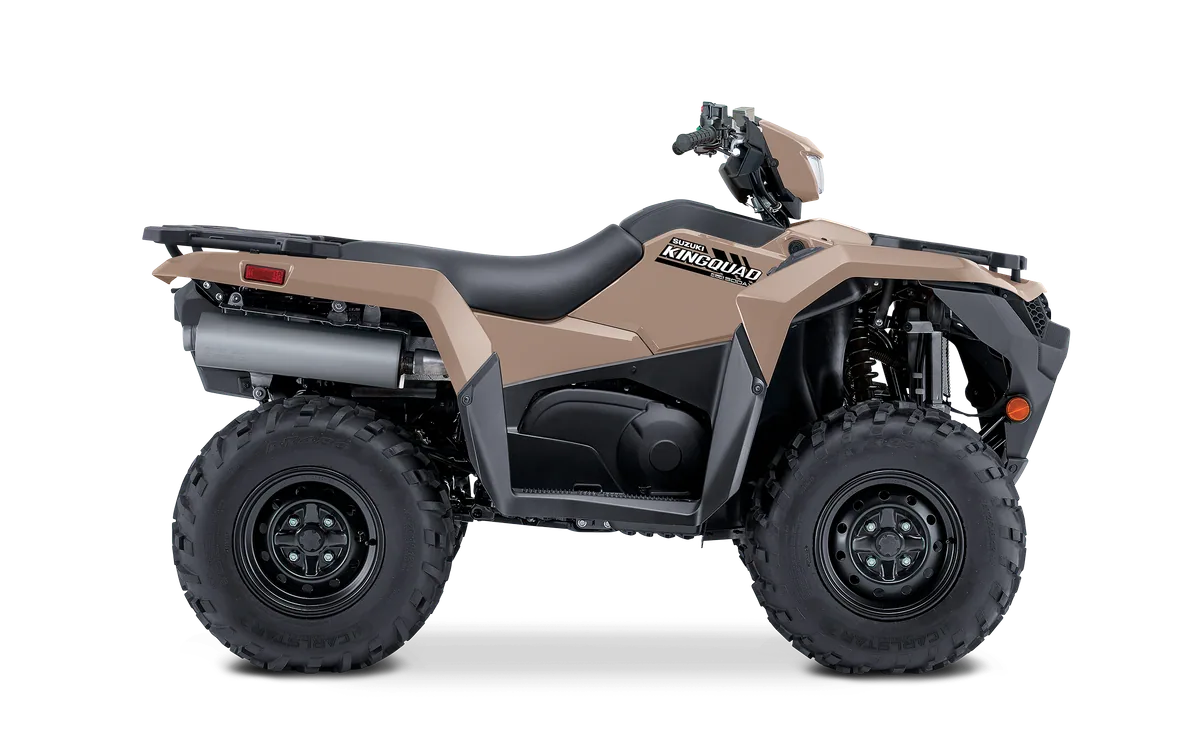

Power Steering
$10,029+$1,650
- Electric Power Steering

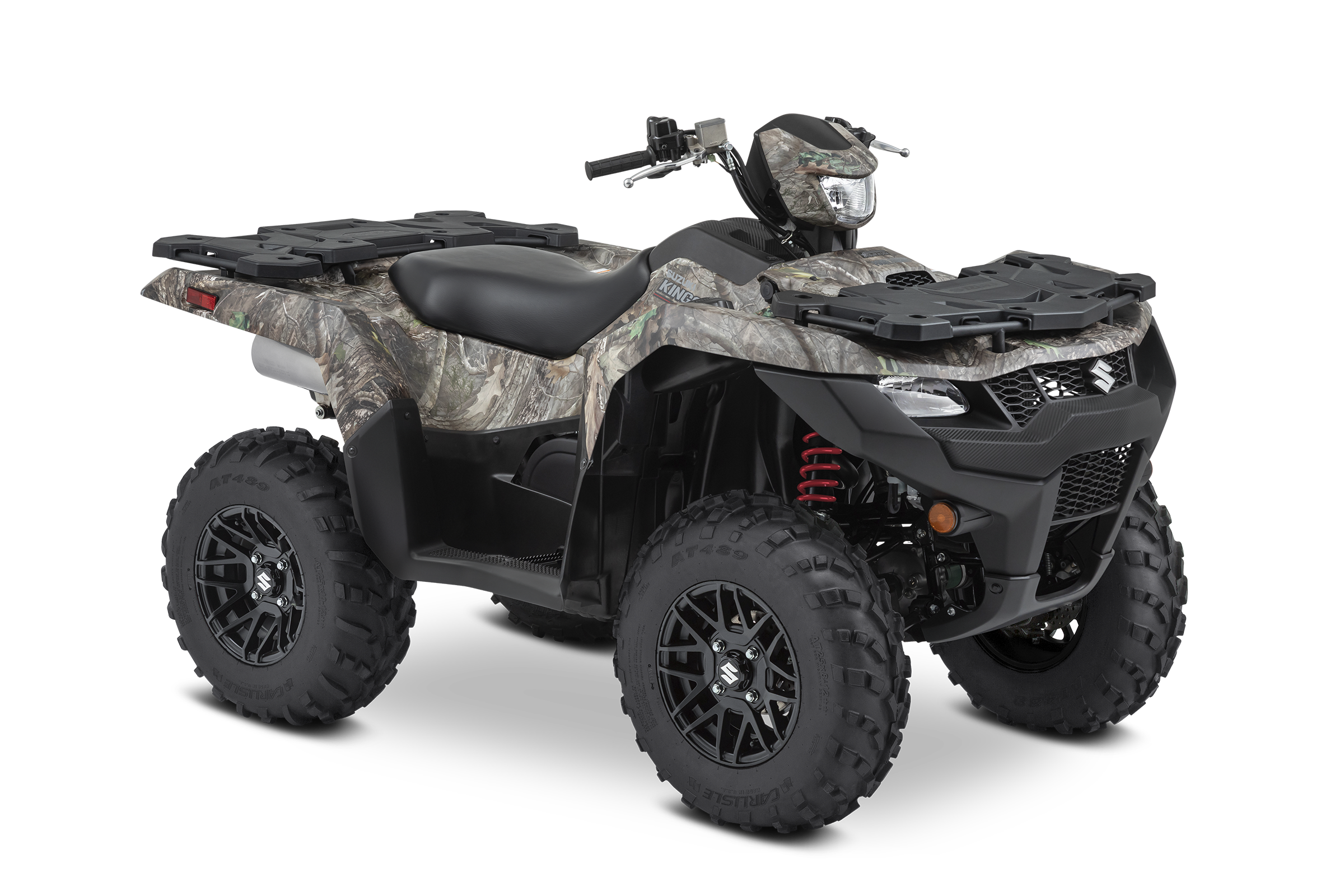

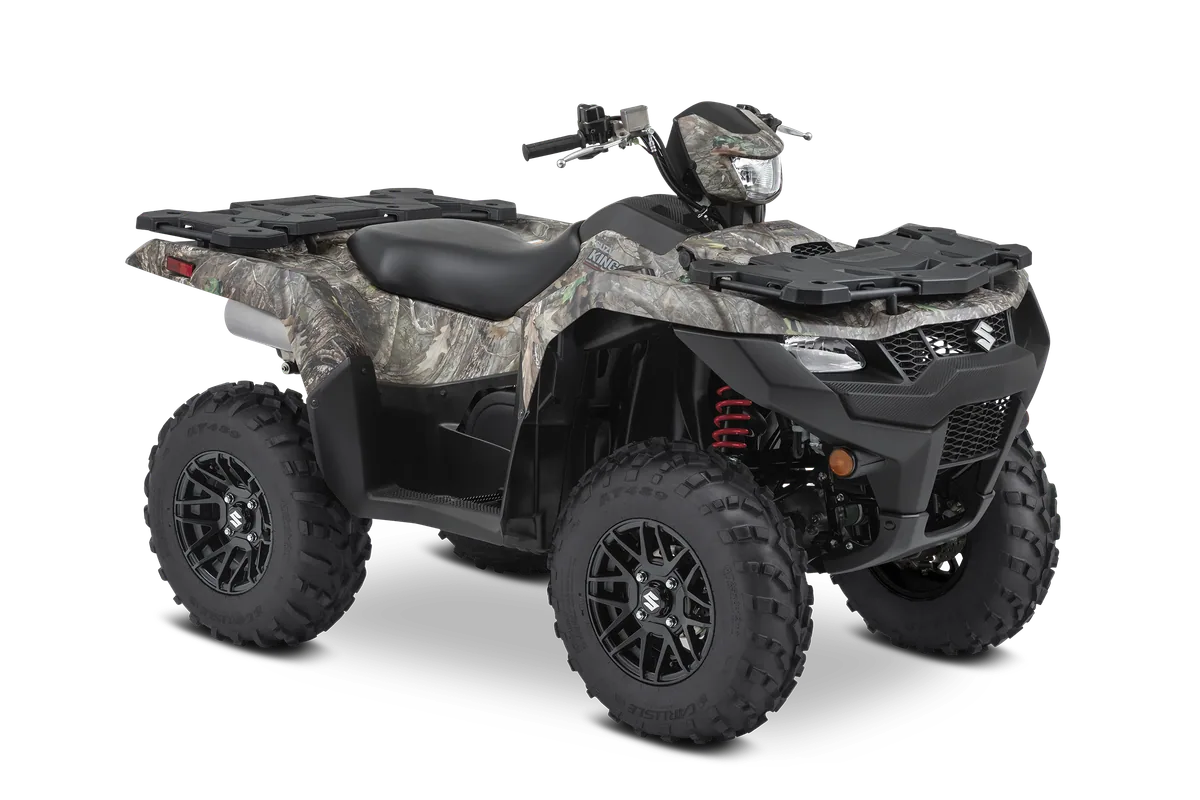

Power Steering SE Camo
$10,429+$2,050
- Electric Power Steering
- True Timber Kanati camouflage
- Cast aluminum wheels

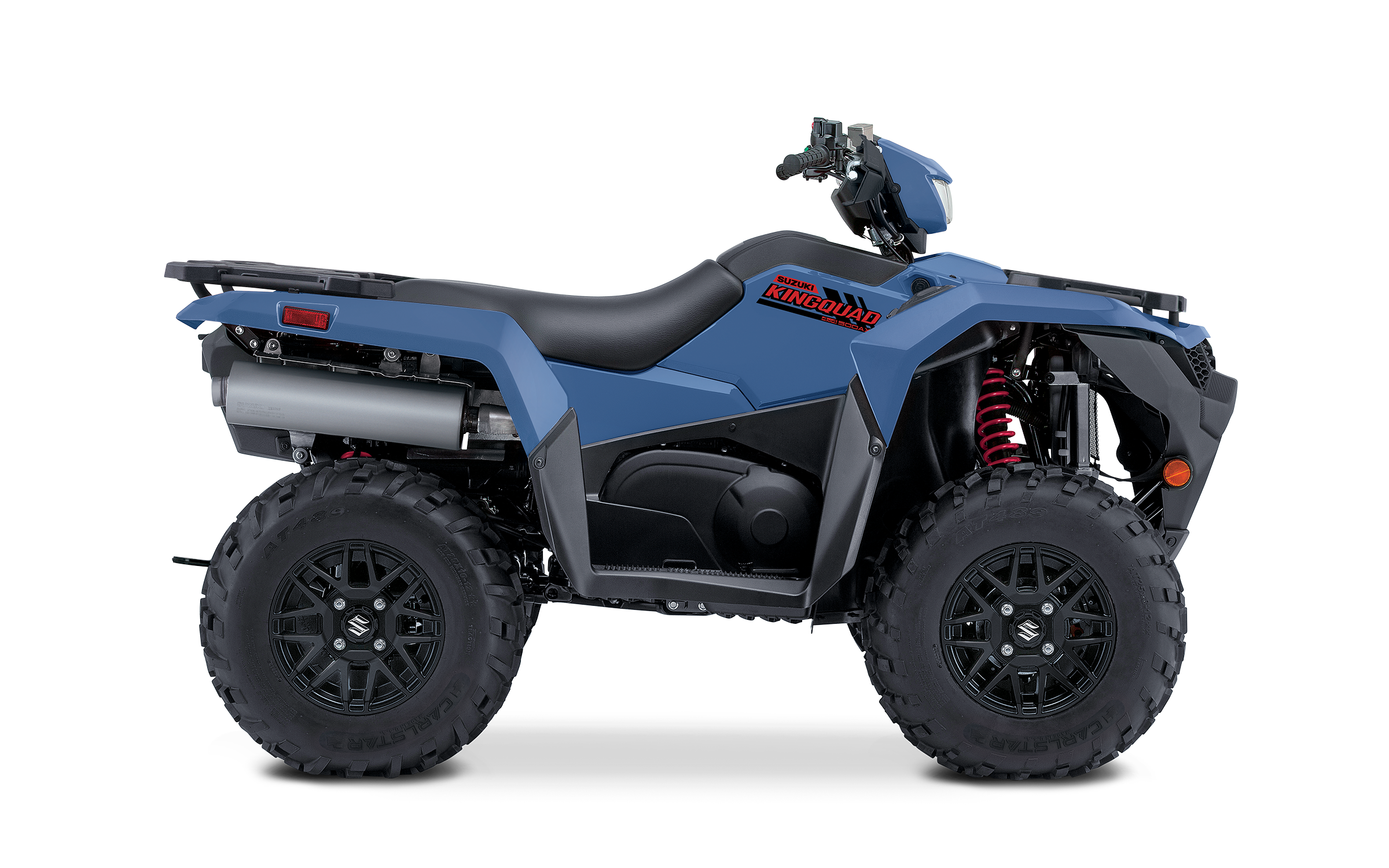

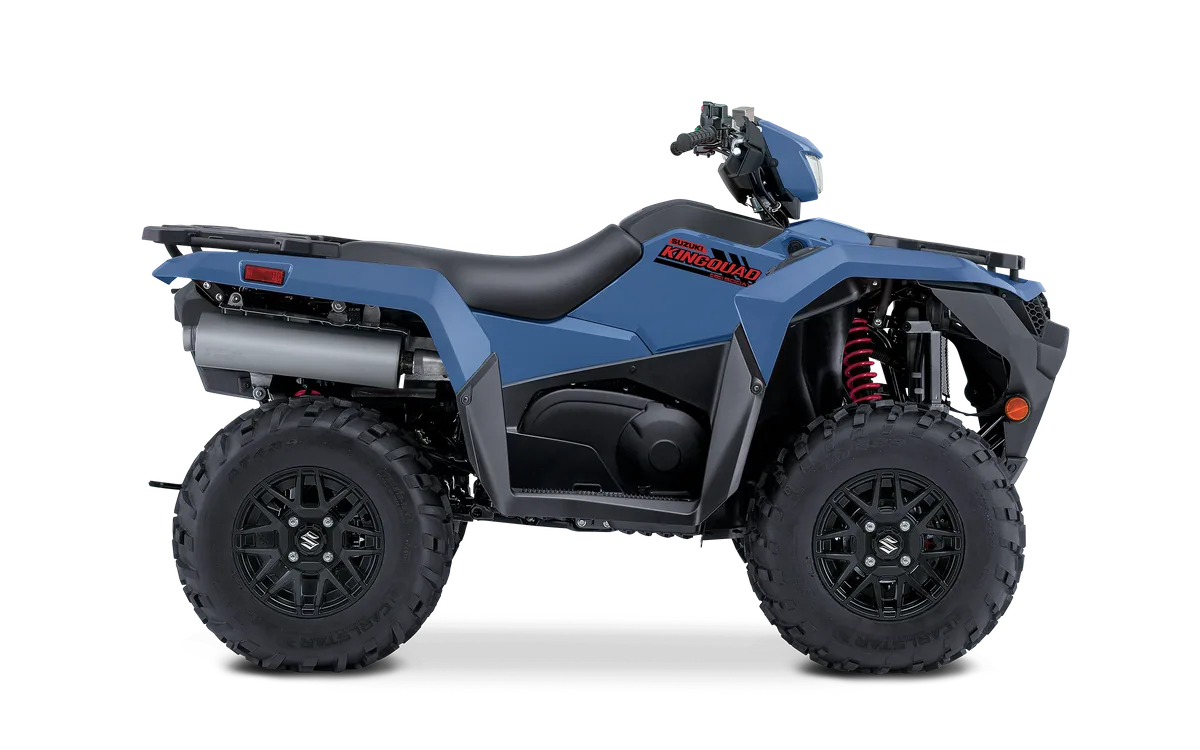

Power Steering SE
$10,679+$2,300
- Electric Power Steering
- Armored Blue Gray color
- Cast aluminum wheels
- Red suspension springs

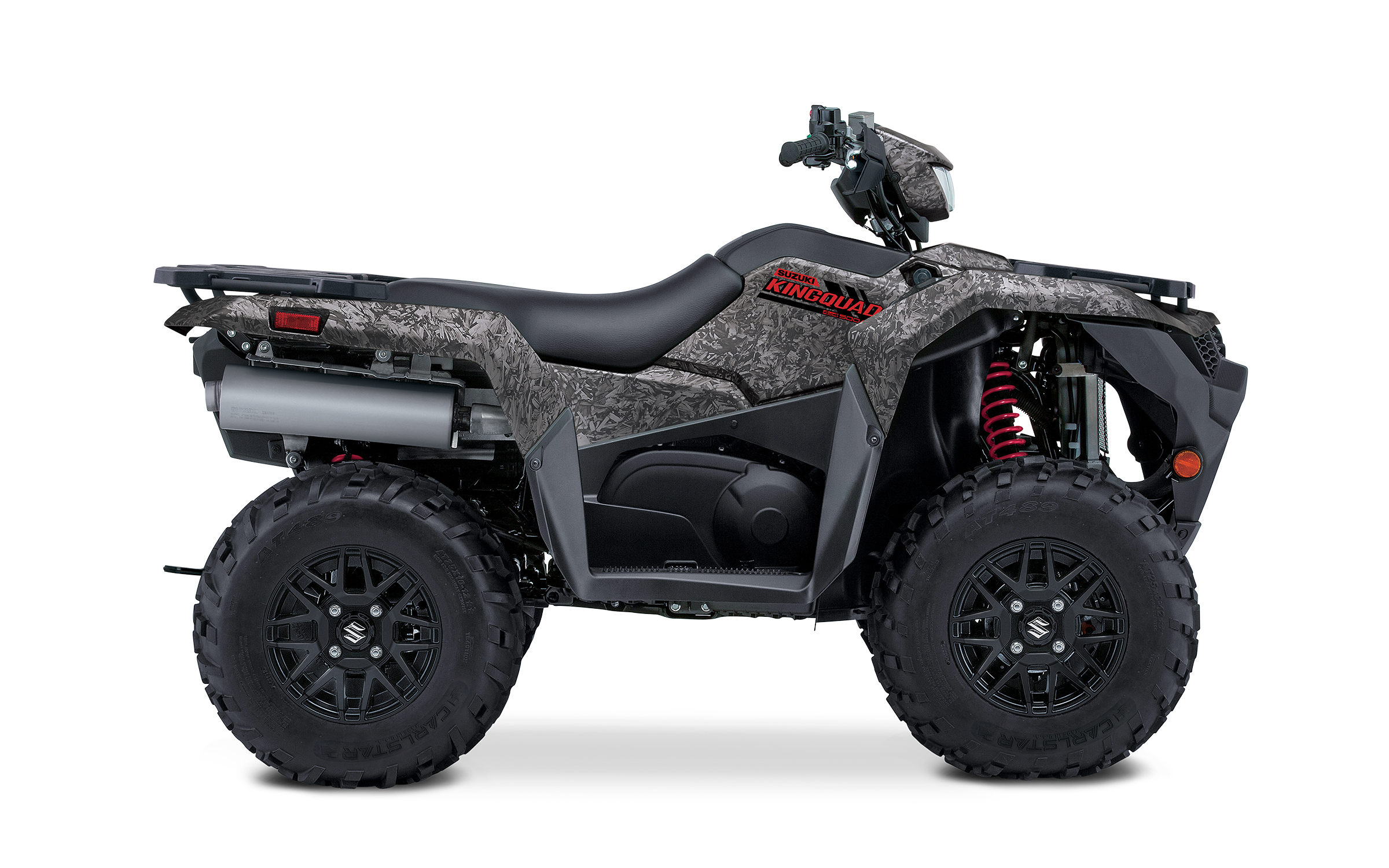

Power Steering SE+
$10,679+$2,300
- Electric Power Steering
- Cast aluminum wheels
- Red suspension springs
- Enhanced bodywork styling
- Handguards
- Winch-ready mounts
- Accessory power outlet
Full Specifications
Engine & Drivetrain
Displacement493cc
ConfigurationSingle
Cylinders1
Horsepower38 HP
Torque32 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontIndependent Double A-Arm
RearIndependent A-Arm/I-Beam
Front Travel6.7"
Rear Travel7.7"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesSealed Drum
Front Tires25x8-12
Rear Tires25x10-12
Dimensions
Length84.6"
Width47.8"
Height50.6"
Wheelbase50.6"
Ground Clearance10.2"
Seat Height36.2"
Weight & Capacity
Curb Weight695 lbs
Seating1 rider
Fuel Capacity4.3 gal
Towing Capacity1,322 lbs
Front Rack Capacity66 lb
Rear Rack Capacity132 lb
Ownership
Factory Warranty24 months
