Photo may show a prior model year or a different trim or colorway.
Side-by-Siderecreation
Yamaha · 2026
Wolverine RMAX4 1000
$25,999 - $27,199
2 trims available
4-seat RMAX adventure machine with crew comfort
999cc
Engine
108 HP
Power
4
Seats
2WD/4WD
Drive
The Yamaha Wolverine RMAX4 1000 adds rear seating to the RMAX platform with a 999cc 108-HP engine, FOX shocks with up to 16.9 inches of rear travel, D-Mode, and a 118.1-inch wheelbase for 4-person trail adventures.
Key Features
- 4-seat configuration
- 999cc parallel-twin engine with 108 HP
- FOX QS3/iQS piggyback shocks
- 14.2" front / 16.9" rear suspension travel
- On-Command 4WD with Diff Lock and Turf Mode
Available Trims
Base

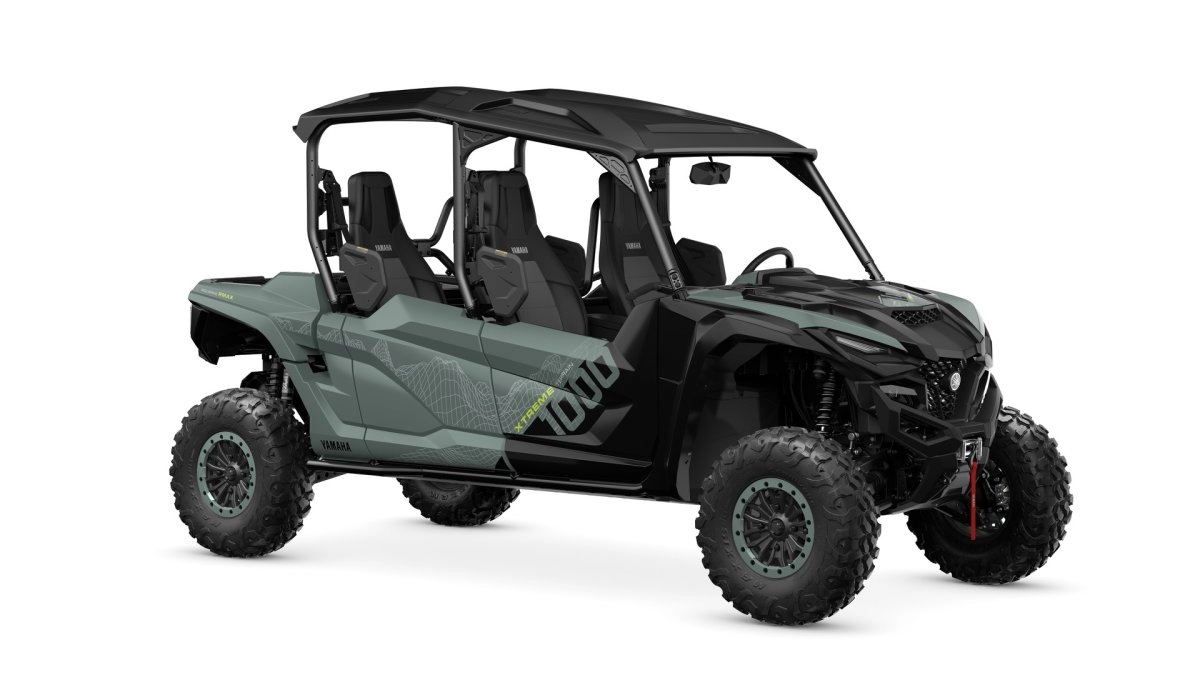

XT-R
$25,999
- Factory-installed WARN winch

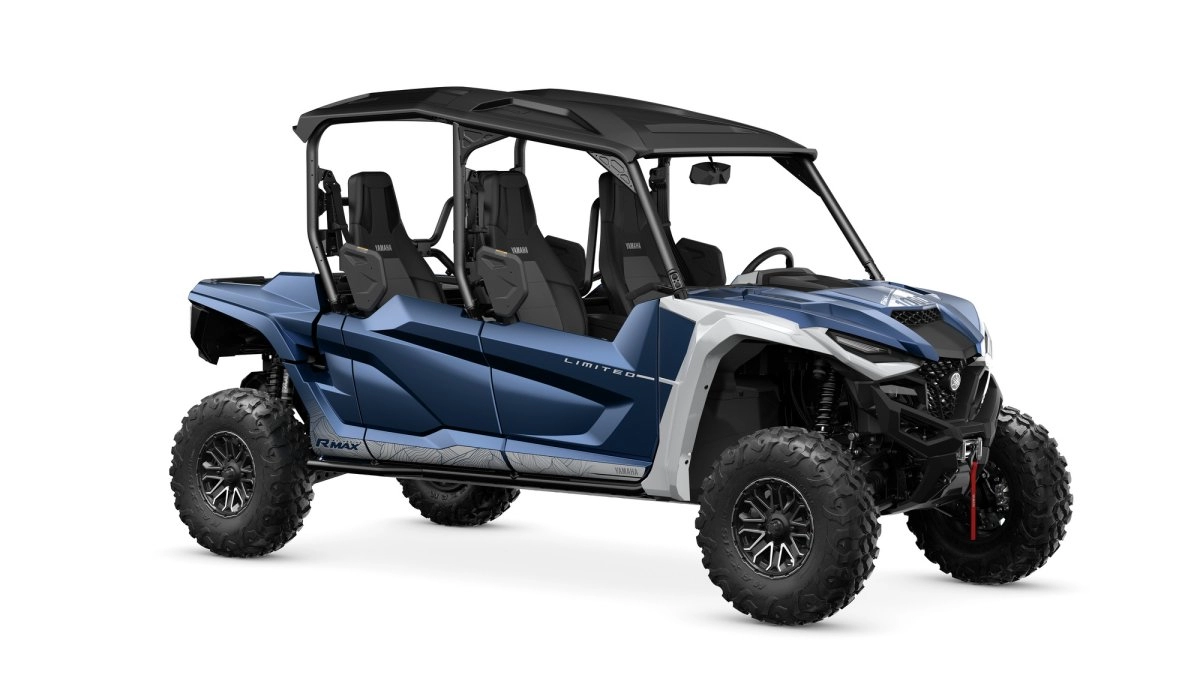

Limited
$27,199+$1,200
- FOX iQS electronically adjustable shocks
- Painted bodywork
- Premium interior
- MTX audio system
Full Specifications
Engine & Drivetrain
Displacement999cc
ConfigurationParallel Twin
Cylinders2
Horsepower108 HP
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemOn-Command 4-way locking differential (Turf / 2WD / 4WD / locked 4WD)
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontIndependent Double Wishbone
RearIndependent Double Wishbone
Front Travel14.2"
Rear Travel16.9"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires30x10R-14
Rear Tires30x10R-14
Dimensions
Length150.8"
Width66.7"
Height82.7"
Wheelbase118.1"
Ground Clearance13.8"
Weight & Capacity
Curb Weight2,381 lbs
Seating4 passengers
Fuel Capacity9.2 gal
Towing Capacity2,000 lbs
Payload Capacity600 lbs
Cargo BedYes
Bed Capacity600 lbs
Ownership
Factory Warranty6 months
Warranty Notes10-year V-belt (CVT) warranty on applicable models
Ready to learn more?
Visit the manufacturer website for the latest details and pricing.
