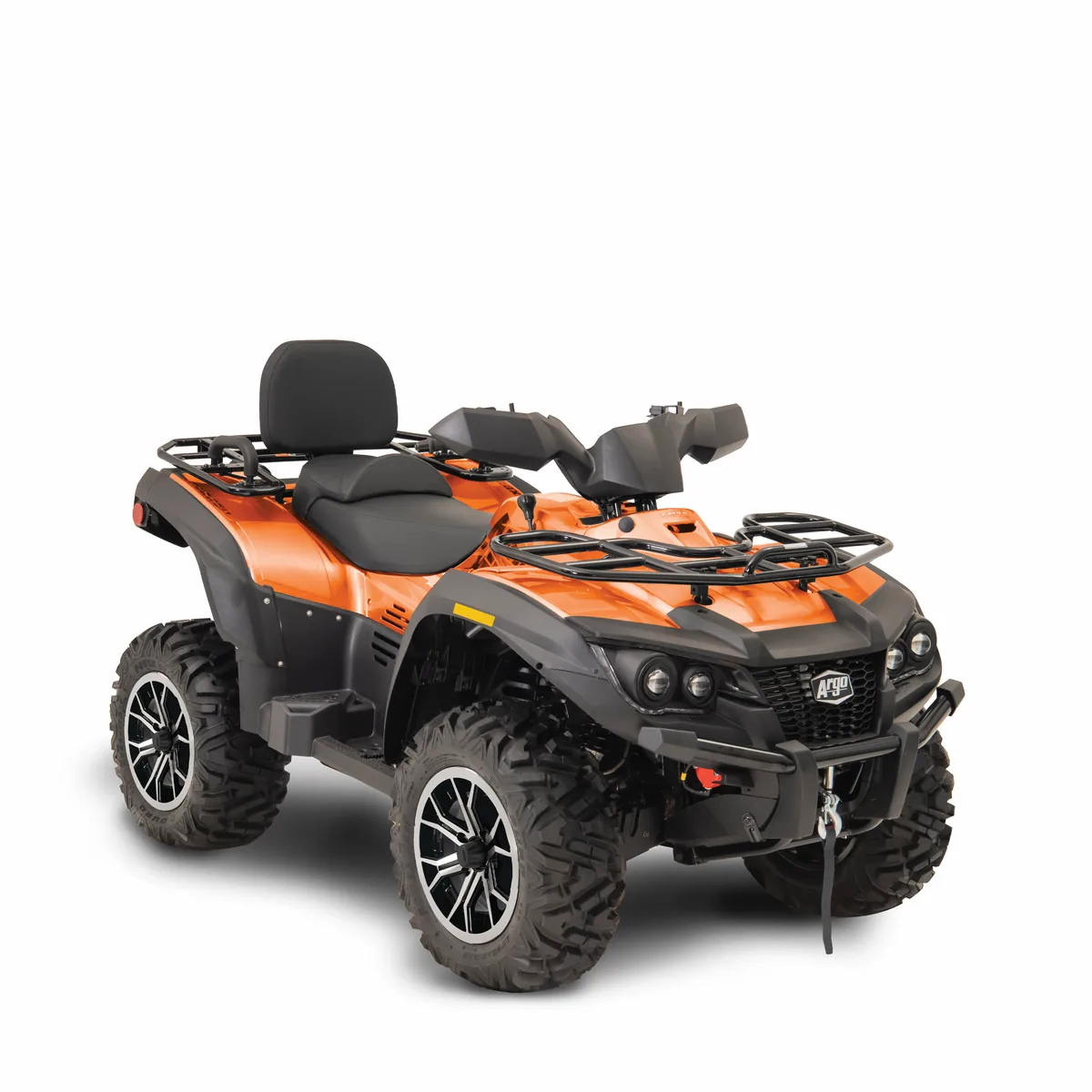

Photo may show a prior model year or a different trim or colorway.
ATVtouring
Argo · 2026
Xplorer XRT 1000
$12,399
Flagship two-up ATV with V-Twin power
997cc
Engine
N/A
Power
2
Seats
2WD/4WD
Drive
The Argo Xplorer XRT 1000 LE is the flagship two-passenger ATV featuring a powerful 997cc V-Twin engine, tri-mode EPS, 3,000 lb winch, and electronic diff lock with turf mode.
Key Features
- 997cc liquid-cooled V-Twin engine
- 2-passenger seating
- Tri-mode electronic power steering
- 3,000 lb winch standard
- Electronic diff lock with turf mode
- 14" aluminum wheels with 26" tires
Available Trims
Base
LE
$12,399
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement997cc
ConfigurationV-Twin
Cylinders2
HorsepowerNot published by manufacturer
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemPush-button 2WD/4WD with front and rear differential locks and Turf Mode
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontIndependent Double A-Arm
RearIndependent Double A-Arm
Front Travel8.7"
Rear Travel10.4"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front TiresAT26x8-14
Rear TiresAT26x10-14
Dimensions
Length91.7"
Width47.2"
Height50.8"
Wheelbase57.1"
Ground Clearance11.6"
Seat Height36.8"
Weight & Capacity
Dry Weight952 lbs
Curb Weight1,009 lbs
Seating2 passengers
Fuel Capacity6.1 gal
Towing Capacity1,225 lbs
Payload Capacity264 lbs
Front Rack Capacity99 lb
Rear Rack Capacity165 lb
Ownership
Factory Warranty12 months
