Photo may show a prior model year or a different trim or colorway.
ATVtouring
Argo · 2026

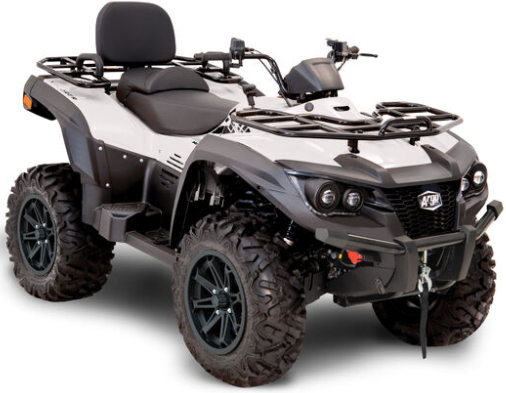

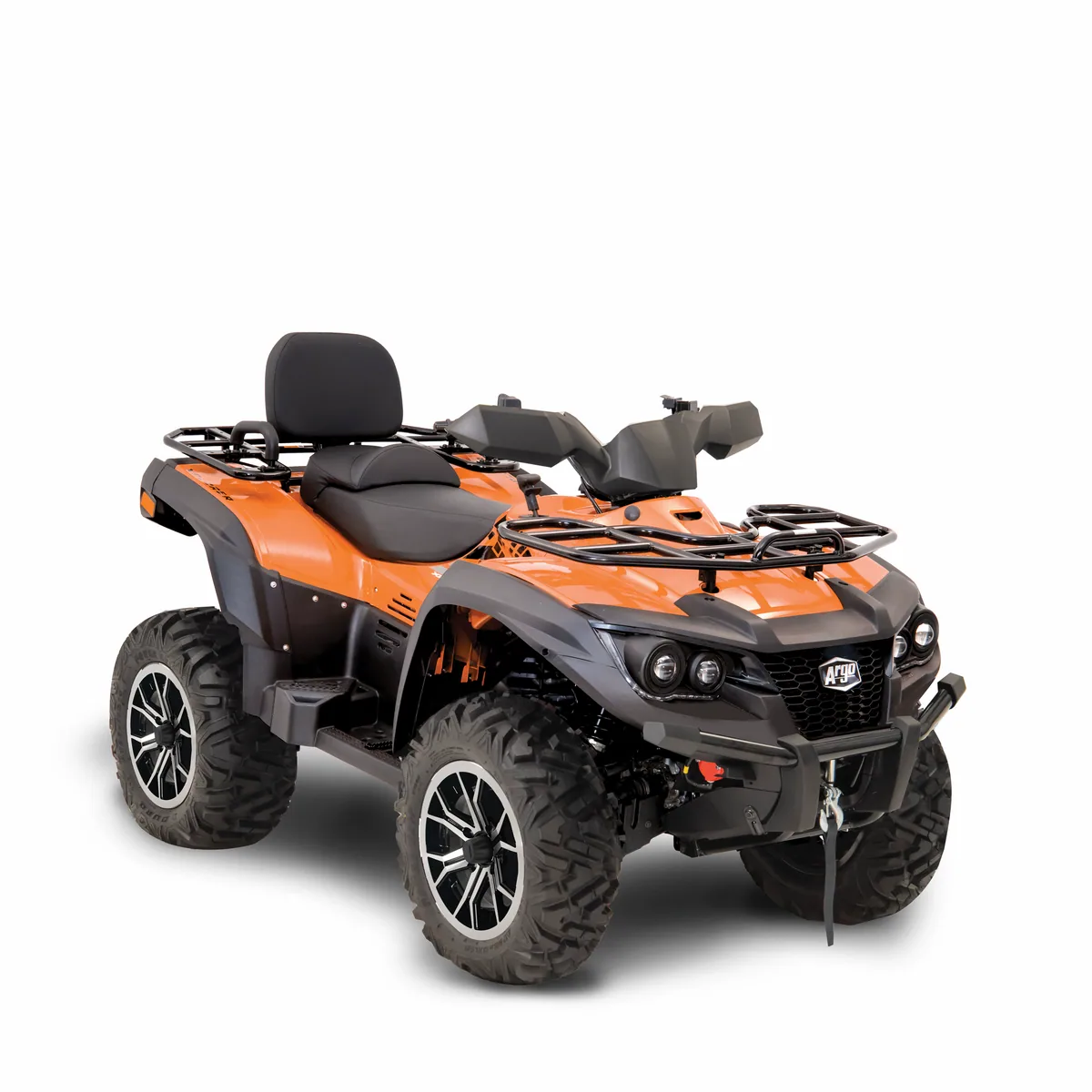

Xplorer XRT 600
$9,699 - $10,399
2 trims available
Two-up ATV with room for a passenger
561cc
Engine
N/A
Power
2
Seats
2WD/4WD
Drive
The Argo Xplorer XRT 600 is a two-passenger ATV with a 561cc liquid-cooled engine, tri-mode EPS, electronic front and rear diff locks, and 13.2 inches of ground clearance.
Key Features
- 561cc liquid-cooled EFI engine
- 2-passenger seating with backrest
- Tri-mode electronic power steering
- Electronic front and rear diff locks
- 13.2" ground clearance
- 1,225 lb towing capacity
Available Trims
Base
EPS
$9,699
Standard configuration
LE
$10,399+$700
- 3,000 lb winch
- 14" aluminum wheels
- 26" tires
- Hand guards
- LED running lights
Full Specifications
Engine & Drivetrain
Displacement561cc
ConfigurationSingle
Cylinders1
HorsepowerNot published by manufacturer
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemPush-button 2WD/4WD with front and rear differential locks
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontIndependent Double A-Arm
RearIndependent Double A-Arm
Front Travel8.7"
Rear Travel9.4"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front TiresAT25x8-12
Rear TiresAT25x10-12
Dimensions
Length92.9"
Width48.6"
Height49.2"
Wheelbase57.1"
Ground Clearance13.2"
Seat Height36.8"
Weight & Capacity
Dry Weight938 lbs
Curb Weight988 lbs
Seating2 passengers
Fuel Capacity4.2 gal
Towing Capacity1,225 lbs
Payload Capacity264 lbs
Front Rack Capacity99 lb
Rear Rack Capacity165 lb
Ownership
Factory Warranty12 months
