Photo may show a prior model year or a different trim or colorway.
Side-by-Sidework
John Deere · 2026

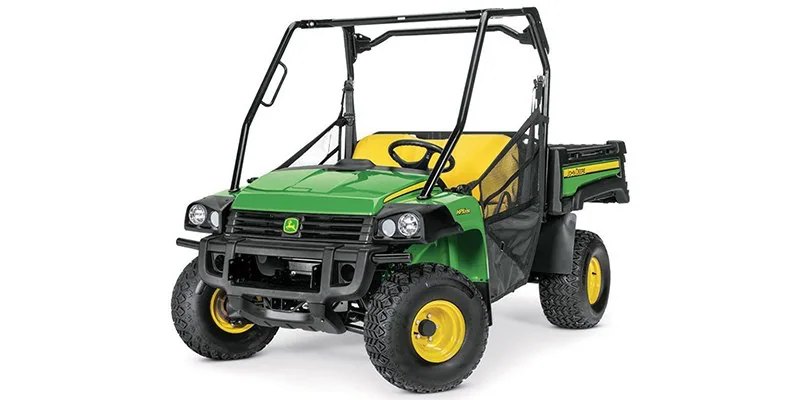

Gator HPX815E Diesel
$17,299
Heavy-duty diesel work utility vehicle
854cc
Engine
18.2 HP
Power
2
Seats
4WD
Drive
The John Deere Gator HPX815E Diesel is a work-focused utility vehicle with an 854cc 3-cylinder diesel engine, 4WD, 1,000 lb cargo bed, and 1,300 lb towing capacity. Diesel power delivers strong torque for demanding work applications.
Key Features
- 18.2 HP 854cc 3-cylinder diesel engine
- 33 lb-ft of torque
- Standard 4WD with electronic engagement
- 1,000 lb cargo bed capacity (16.4 cu ft)
- 1,300 lb towing capacity
- 1,400 lb payload capacity
- No power steering
- Two-speed CVT with high/low range
- Diesel fuel economy
Available Trims
Base
HPX815E
$17,299
- Diesel engine
Full Specifications
Engine & Drivetrain
Displacement854cc
ConfigurationInline
Cylinders3
Horsepower18.2 HP
Torque33 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSelectable 4WD with rear differential lock
Drive Type4WD
Power SteeringNo
Suspension
FrontIndependent MacPherson Strut
RearSemi-Independent Coil-Over Shock
Front Travel5.2"
Rear Travel3.5"
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires24x9.5-10
Rear Tires24x12-10
Dimensions
Length119"
Width58.5"
Height73.5"
Wheelbase75.2"
Ground Clearance6"
Weight & Capacity
Dry Weight1,526 lbs
Seating2 passengers
Fuel Capacity5.3 gal
Towing Capacity1,300 lbs
Payload Capacity1,400 lbs
Cargo BedYes
Bed Capacity1,000 lbs
Bed Dimensions (L×W×H)45″ × 52″ × 12″
Ownership
Factory Warranty12 months
Warranty Notes12 months / 1,000 hours
