Photo may show a prior model year or a different trim or colorway.
Side-by-Sideutility
John Deere · 2026

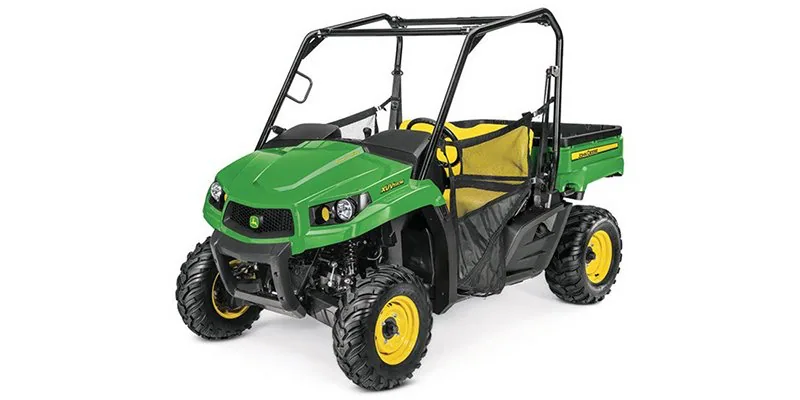

Gator XUV590
$16,899 - $18,299
2 trims available
Mid-size crossover with 32 HP and power steering
586cc
Engine
32 HP
Power
2
Seats
2WD/4WD
Drive
The John Deere Gator XUV590M is a mid-size crossover utility vehicle with a 586cc liquid-cooled EFI engine producing 32 HP and a top speed of 48 mph. Features power steering, LED headlights, and selectable 4WD. Also available in 4-passenger S4 configuration.
Key Features
- 32 HP 586cc inline twin EFI gasoline engine
- Electric Power Steering (EPS) standard
- LED headlights
- 48 mph top speed
- 1,500 lb towing capacity
- 500 lb cargo bed capacity
- Selectable 4WD with locking rear differential
- 4-passenger S4 version available
- Assembled in Wisconsin, USA
Available Trims
Base
590M (2-Passenger)
$16,899
- Electric Power Steering (EPS)
- LED headlights
- 2-passenger bench

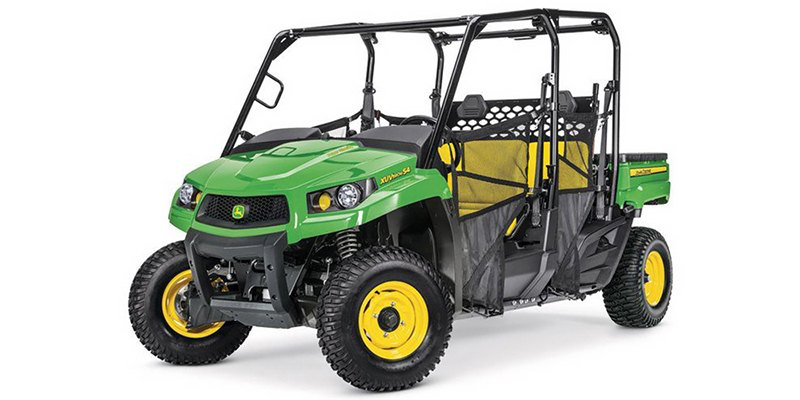

590M S4 (4-Passenger)
$18,299+$1,400
- Electric Power Steering (EPS)
- LED headlights
- 4-passenger seating
- Convertible cargo rack
Full Specifications
Engine & Drivetrain
Displacement586cc
ConfigurationInline Twin
Cylinders2
Horsepower32 HP
Torque32.9 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontDual A-Arm Independent with Coil-Over Shocks
RearIndependent with Lower A-Arm and Upper Camber Link
Front Travel8"
Rear Travel8"
Brakes & Tires
Front BrakesVentilated Stainless Steel Disc
Rear BrakesVentilated Stainless Steel Disc
Front Tires25x8-12
Rear Tires25x10-12
Dimensions
Length113"
Width56.5"
Height73.5"
Wheelbase72.8"
Ground Clearance10.5"
Weight & Capacity
Dry Weight1,491 lbs
Curb Weight1,491 lbs
Seating2 passengers
Fuel Capacity7.4 gal
Towing Capacity1,500 lbs
Payload Capacity900 lbs
Cargo BedYes
Bed Capacity500 lbs
Ownership
Factory Warranty12 months
Warranty Notes12 months / 1,000 hours
