Side-by-SideutilityNew for 2026
John Deere · 2026

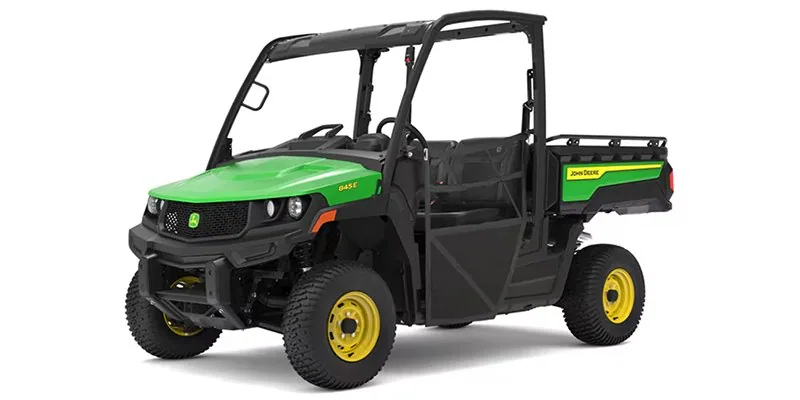

Gator XUV845
$18,499 - $41,199
5 trims available
Redesigned full-size crossover with 12" ground clearance and class-leading cargo
812cc
Engine
53 HP
Power
3
Seats
2WD/4WD
Drive
The John Deere Gator XUV845 is the redesigned full-size gasoline crossover utility vehicle assembled in Wisconsin, featuring an 812cc 53 HP engine, 12 inches of ground clearance, class-leading 18.5 cu ft cargo box, and available enclosed HVAC cab with heat and A/C.
Key Features
- 53 HP 812cc 3-cylinder EFI gasoline engine
- 12" ground clearance (vs 11.2" on XUV835)
- Class-leading 18.5 cu ft cargo box volume
- 4,000 lb towing capacity
- Electric Power Steering (EPS) on M and R trims
- Enclosed HVAC cab with Heat + A/C available
- R Signature Edition with leather seats and touchscreen infotainment
- JDLink M Modem connectivity option (MY2026+)
- Assembled in Wisconsin, USA
Available Trims
Base
845E (Open Station)
$18,499
- Open ROPS station
- No power steering
- Steel wheels
- Black vinyl bench seat

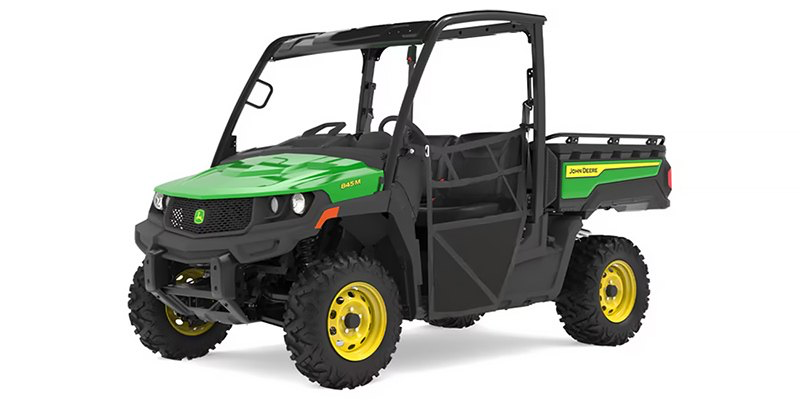

845M (Open Station, EPS)
$20,599+$2,100
- Electric Power Steering (EPS)
- Maxxis Bighorn 2.0 tires
- Open ROPS station

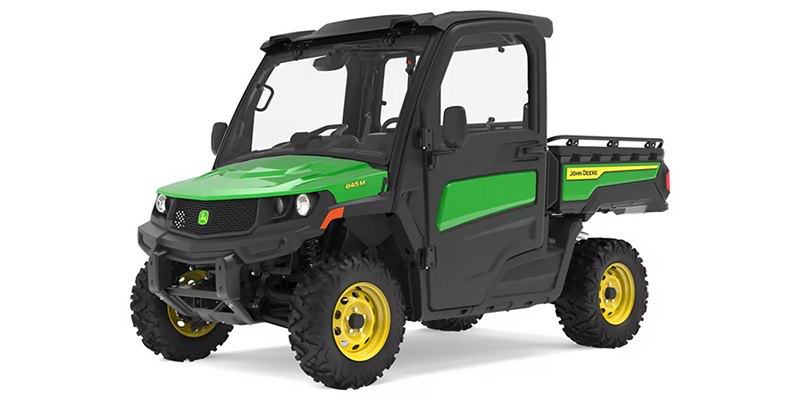

845M HVAC Cab
$29,999+$11,500
- Electric Power Steering (EPS)
- Enclosed cab with Heat + A/C (HVAC)
- Roll-down windows
- Fully opening windshield
- Black vinyl seats

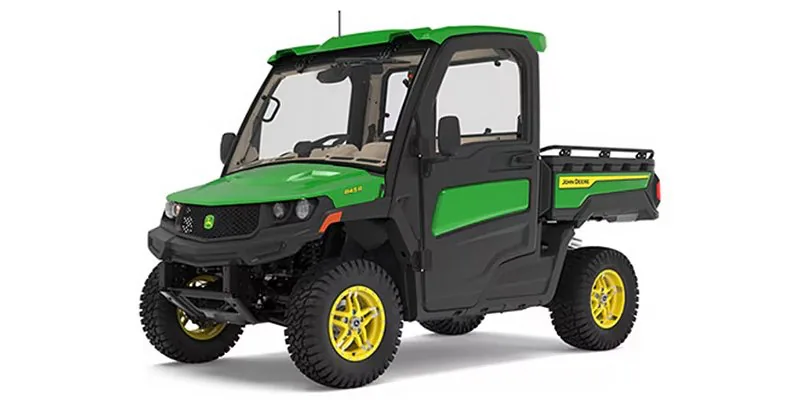

845R Premium Cab
$34,799+$16,300
- Electric Power Steering (EPS)
- Premium HVAC cab with Heat + A/C
- Dual-beam LED headlights
- Stone-colored interior
- Two-tone vinyl seats
- Cargo box power lift
- Standard radio
- Alloy wheels

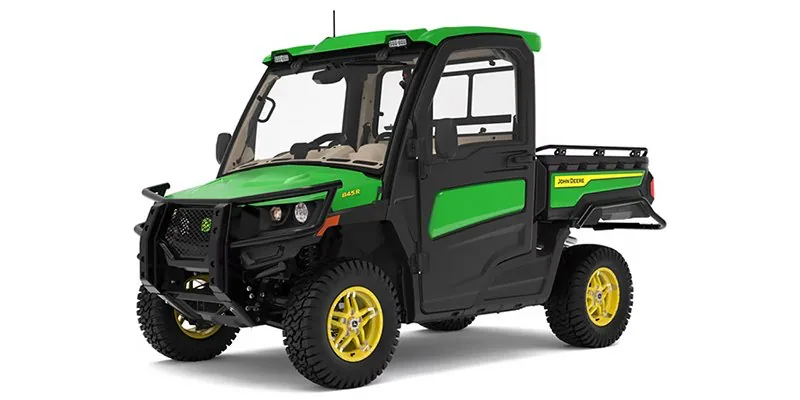

845R Signature Edition
$41,199+$22,700
- Electric Power Steering (EPS)
- Ultimate HVAC cab with Heat + A/C
- Genuine leather seats
- 6.4" touchscreen infotainment with 7 speakers (Harman)
- Apple CarPlay and Android Auto
- SiriusXM satellite radio
- Rear-facing camera
- Bumper Pro Brush Guard
- Roof-mounted LED driving lights
- Rear-sliding window
- Rear fender flares and guards
- Alloy wheels
Full Specifications
Engine & Drivetrain
Displacement812cc
ConfigurationInline
Cylinders3
Horsepower53 HP
Torque47 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Drive Type2WD/4WD
Power SteeringNo
Climate ControlHeat + A/C (cabbed trims)
Suspension
FrontDual A-Arm Independent with Adjustable Coils
RearDual A-Arm Independent with Adjustable Coils and Sway Bar
Front Travel8"
Rear Travel9"
Brakes & Tires
Front BrakesHydraulic Disc (Twin Piston)
Rear BrakesHydraulic Disc
Front Tires27x9-R14
Rear Tires27x11-R14
Dimensions
Length128"
Width64"
Height78"
Wheelbase87"
Ground Clearance12"
Weight & Capacity
Dry Weight1,946 lbs
Curb Weight1,946 lbs
Seating3 passengers
Fuel Capacity11.2 gal
Towing Capacity4,000 lbs
Payload Capacity1,454 lbs
Cargo BedYes
Bed Capacity1,000 lbs
Ownership
Factory Warranty12 months
Warranty Notes12 months / 1,000 hours
