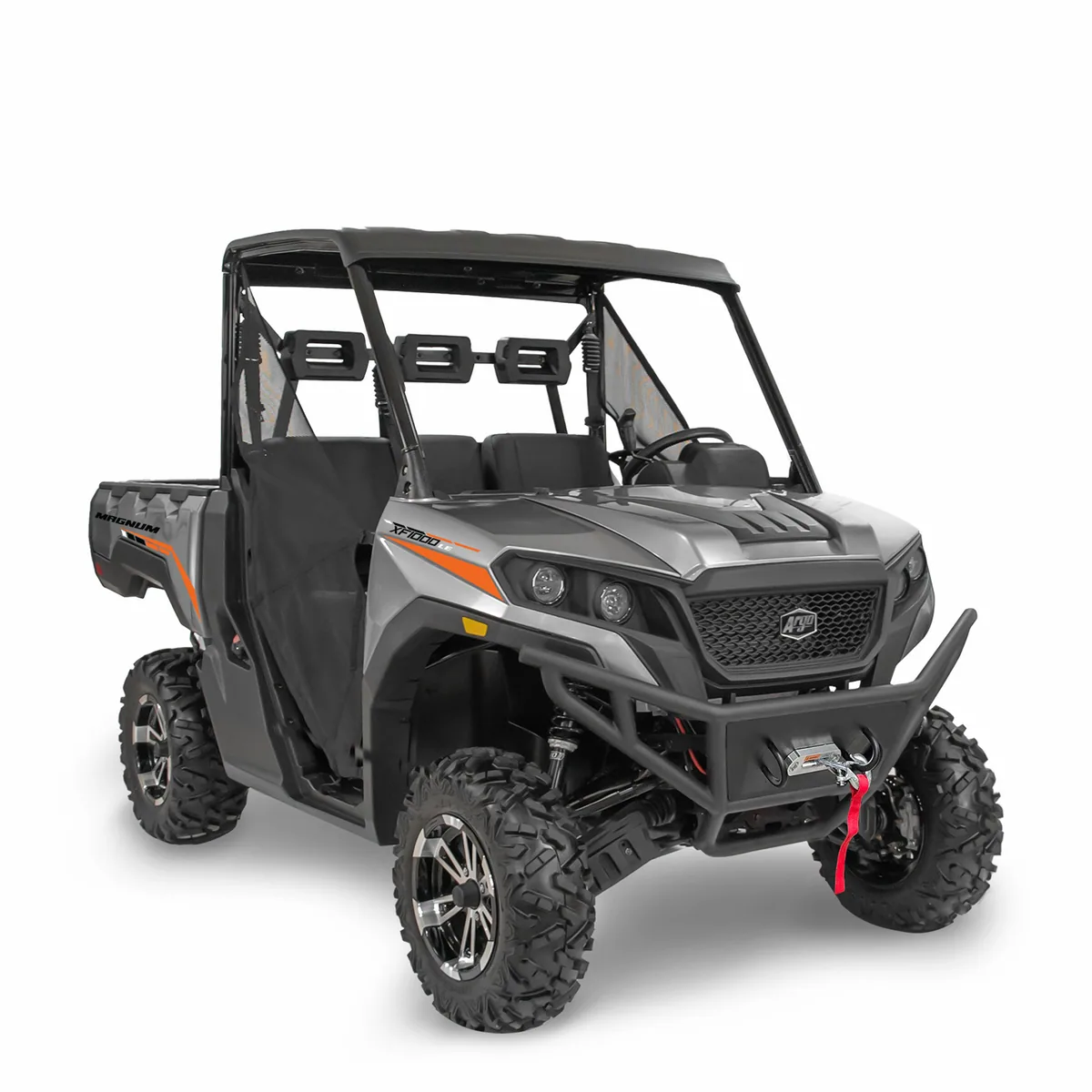

Photo may show a prior model year or a different trim or colorway.
Side-by-Sideutility
Argo · 2026
Magnum XF 1000
$18,999
Flagship side-by-side with V-Twin power
997cc
Engine
N/A
Power
3
Seats
2WD/4WD
Drive
The Argo Magnum XF 1000 LE is the flagship utility side-by-side featuring a 997cc V-Twin engine, 11 inches of suspension travel, tri-mode EPS, standard roof, 4,500 lb winch, and 2,500 lb towing capacity.
Key Features
- 997cc liquid-cooled V-Twin engine
- Tri-mode electronic power steering
- 11" suspension travel front and rear
- 4,500 lb winch with synthetic rope
- Standard roof
- 2,500 lb towing / 1,000 lb bed capacity
- 14.2" ground clearance
- Speed key system (25 mph limiter)
Available Trims
Base
LE
$18,999
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement997cc
ConfigurationV-Twin
Cylinders2
HorsepowerNot published by manufacturer
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemDrive modes: Turf / Turf Assist / 2WD / 4WD / 4WD Lock
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontIndependent Double A-Arm
RearIndependent Double A-Arm with Sway Bar
Front Travel11"
Rear Travel11"
Brakes & Tires
Front Brakes4-Wheel Hydraulic Disc
Rear Brakes4-Wheel Hydraulic Disc
Front TiresAT27x9-14
Rear TiresAT27x11-14
Dimensions
Length122.9"
Width64"
Height78.7"
Wheelbase83.5"
Ground Clearance14.2"
Seat Height37.3"
Weight & Capacity
Dry Weight1,642 lbs
Curb Weight1,714 lbs
Seating3 passengers
Fuel Capacity11.09 gal
Towing Capacity2,500 lbs
Payload Capacity2,086 lbs
Cargo BedYes
Bed Capacity1,000 lbs
Bed Dimensions (L×W×H)63″ × 42.5″ × 12.6″
Ownership
Factory Warranty12 months
