Photo may show a prior model year or a different trim or colorway.
Side-by-Sideutility
Argo · 2026
Magnum XF 500
$9,999 - $11,299
2 trims available
Compact utility side-by-side
443cc
Engine
N/A
Power
2
Seats
2WD/4WD
Drive
The Argo Magnum XF 500 is a compact utility side-by-side with a 443cc liquid-cooled EFI engine, selectable 4WD with diff lock, tilt steering, and a 441 lb capacity cargo bed.
Key Features
- 443cc liquid-cooled EFI engine
- Selectable 2WD/4WD/Lock with diff lock
- 1,200 lb towing capacity
- 441 lb cargo bed capacity
- Tilt steering and digital dash
- 8.5 gallon fuel tank
Available Trims
Base
Base
$9,999
Standard configuration

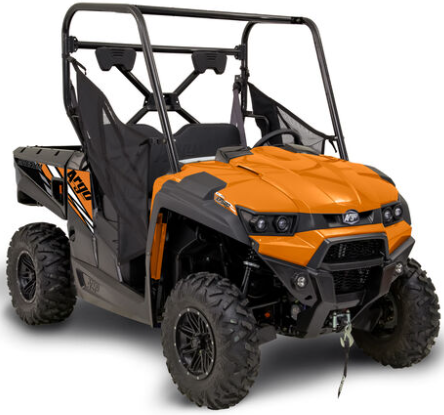

LE
$11,299+$1,300
- Electronic power steering
- 3,000 lb winch
- Aluminum wheels
- Premium painted body panels
Full Specifications
Engine & Drivetrain
Displacement443cc
ConfigurationSingle
Cylinders1
HorsepowerNot published by manufacturer
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemElectronic 2WD/4WD with front differential lock
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontIndependent Double A-Arm
RearIndependent Double A-Arm
Front Travel6.9"
Rear Travel6.8"
Brakes & Tires
Front BrakesDual Hydraulic Disc
Rear BrakesHydraulic Disc
Front TiresAT25x8-12
Rear TiresAT25x10-12
Dimensions
Length106.3"
Width56.7"
Height77"
Wheelbase72"
Ground Clearance10"
Seat Height32.9"
Weight & Capacity
Dry Weight1,140 lbs
Curb Weight1,186 lbs
Seating2 passengers
Fuel Capacity8.5 gal
Towing Capacity1,200 lbs
Payload Capacity1,152 lbs
Cargo BedYes
Bed Capacity441 lbs
Bed Dimensions (L×W×H)29.8″ × 46″ × 11.5″
Ownership
Factory Warranty12 months
