Photo may show a prior model year or a different trim or colorway.
Side-by-SideworkNew for 2026
John Deere · 2026
Gator XUV875 Diesel
$22,599 - $43,199
4 trims available
Redesigned full-size diesel crossover with 12" ground clearance
854cc
Engine
22.8 HP
Power
3
Seats
2WD/4WD
Drive
The John Deere Gator XUV875 Diesel is the redesigned full-size diesel crossover utility vehicle assembled in Wisconsin. Features an 854cc 3-cylinder diesel engine, 12 inches of ground clearance, class-leading 18.5 cu ft cargo box, and available enclosed HVAC cab.
Key Features
- 22.8 HP 854cc 3-cylinder diesel engine
- 36.9 lb-ft of torque for heavy-duty work
- 12" ground clearance (vs 11.2" on XUV865)
- Class-leading 18.5 cu ft cargo box volume
- 4,000 lb towing capacity
- Electric Power Steering (EPS) standard
- Enclosed HVAC cab with Heat + A/C available
- R Signature Edition with leather and touchscreen
- JDLink M Modem connectivity option (MY2026+)
- Assembled in Wisconsin, USA
Available Trims

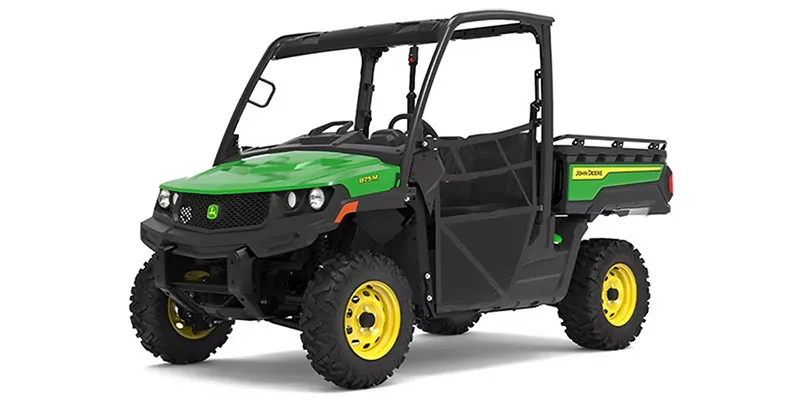

Base
875M (Open Station, EPS)
$22,599
- Electric Power Steering (EPS)
- Maxxis Bighorn 2.0 tires
- Open ROPS station

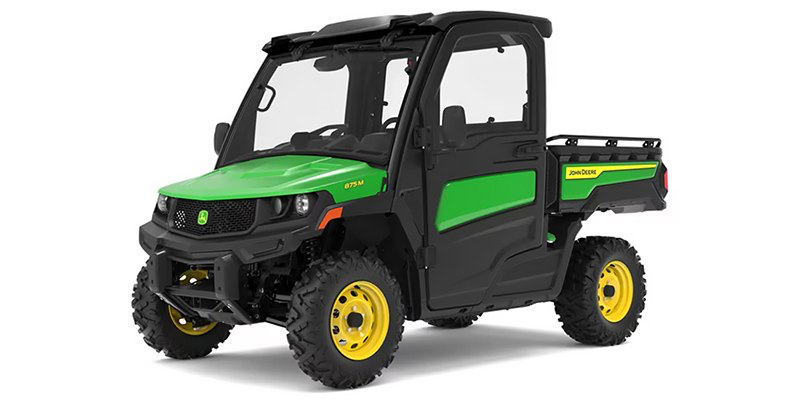

875M HVAC Cab
$31,999+$9,400
- Electric Power Steering (EPS)
- Enclosed cab with Heat + A/C (HVAC)
- Roll-down windows
- Fully opening windshield
- Black vinyl seats

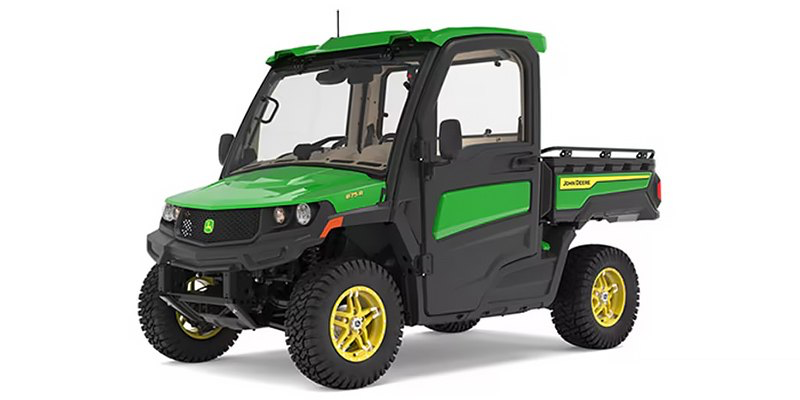

875R Premium Cab
$36,799+$14,200
- Electric Power Steering (EPS)
- Premium HVAC cab with Heat + A/C
- Dual-beam LED headlights
- Stone-colored interior
- Two-tone vinyl seats
- Cargo box power lift
- Standard radio
- Alloy wheels

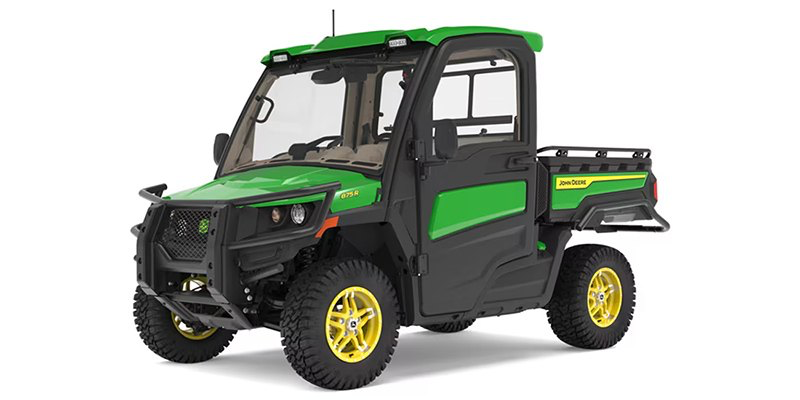

875R Signature Edition
$43,199+$20,600
- Electric Power Steering (EPS)
- Ultimate HVAC cab with Heat + A/C
- Genuine leather seats
- 6.4" touchscreen infotainment with 7 speakers (Harman)
- Apple CarPlay and Android Auto
- SiriusXM satellite radio
- Rear-facing camera
- Bumper Pro Brush Guard
- Roof-mounted LED driving lights
- Rear-sliding window
- Rear fender flares and guards
- Alloy wheels
Full Specifications
Engine & Drivetrain
Displacement854cc
ConfigurationInline
Cylinders3
Horsepower22.8 HP
Torque36.9 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSelectable 4WD with auto-locking front and hand-operated rear differential lock
Drive Type2WD/4WD
Power SteeringYes (EPS)
Climate ControlHeat + A/C (cabbed trims)
Suspension
FrontDual A-Arm Independent with Adjustable Coils
RearDual A-Arm Independent with Adjustable Coils and Sway Bar
Front Travel8"
Rear Travel9"
Brakes & Tires
Front BrakesHydraulic Disc (Twin Piston)
Rear BrakesHydraulic Disc
Front Tires27x9-R14
Rear Tires27x11-R14
Dimensions
Length128"
Width64"
Height78"
Wheelbase87"
Ground Clearance12"
Weight & Capacity
Dry Weight2,017 lbs
Curb Weight2,017 lbs
Seating3 passengers
Fuel Capacity11.2 gal
Towing Capacity4,000 lbs
Payload Capacity1,383 lbs
Cargo BedYes
Bed Capacity1,000 lbs
Bed Dimensions (L×W×H)43.3″ × 54.8″ × 13.5″
Ownership
Factory Warranty12 months
Warranty Notes12 months / 1,000 hours
