Side-by-Sidework
Bobcat · 2026

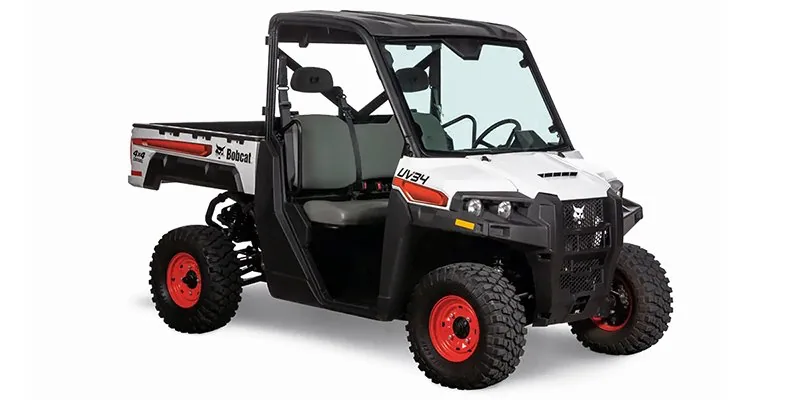

UV34 Diesel
$21,745
Diesel power, no DPF required
899cc
Engine
23.5 HP
Power
3
Seats
2WD/4WD
Drive
The Bobcat UV34 Diesel is a 23.5 HP diesel-powered utility vehicle with a 3-cylinder Tier 4 engine that does not require a diesel particulate filter. Features selectable 2WD/4WD, 1,250 lb composite cargo bed, 2,500 lb towing capacity, and a 140-amp high-output alternator.
Key Features
- 23.5 HP 3-cylinder diesel engine (under 25 HP, no DPF required)
- Electronic Power Steering (standard)
- Selectable single-wheel / 2WD / 4WD drive modes
- 1,250 lb composite cargo bed with 15.6 cu ft capacity
- 2,500 lb towing capacity with 2-inch receiver hitch
- 35 mph top speed (configurable to 25 or 15 mph)
- 140-amp peak high-output alternator
- Automatic glow plugs for cold-weather starting
- EPA Tier 4 emissions compliant
- CVT or hydrostatic transmission options
Available Trims
Base
Base
$21,745
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement899cc
ConfigurationInline Triple
Cylinders3
Horsepower23.5 HP
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontIndependent Dual A-Arm
RearDe Dion with Sway Bar
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires25x10-12
Rear Tires25x10-12
Dimensions
Length126"
Width62.5"
Height75"
Wheelbase85"
Ground Clearance11.7"
Weight & Capacity
Dry Weight1,935 lbs
Seating3 passengers
Fuel Capacity11.5 gal
Towing Capacity2,500 lbs
Payload Capacity1,900 lbs
Cargo BedYes
Bed Capacity1,250 lbs
