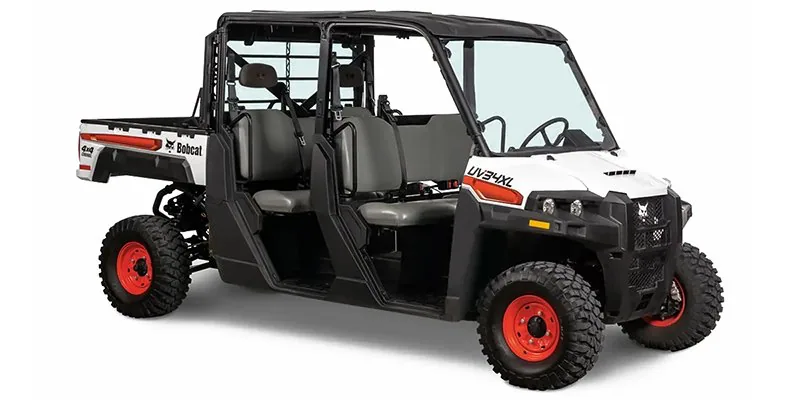

Photo may show a prior model year or a different trim or colorway.
Side-by-Sidework
Bobcat · 2026
UV34XL Diesel
$22,335
Crew-size diesel workhorse, no DPF required
899cc
Engine
23.5 HP
Power
6
Seats
2WD/4WD
Drive
The Bobcat UV34XL Diesel is a 6-passenger crew-cab utility vehicle with a 23.5 HP 3-cylinder diesel engine that requires no diesel particulate filter. Features selectable 2WD/4WD, 1,250 lb composite cargo bed, 2,500 lb towing capacity, and a 140-amp high-output alternator.
Key Features
- 23.5 HP 3-cylinder diesel engine (under 25 HP, no DPF required)
- 6-passenger crew-cab seating
- Electronic Power Steering (standard)
- Selectable single-wheel / 2WD / 4WD drive modes
- 1,250 lb composite cargo bed with 15.6 cu ft capacity
- 2,500 lb towing capacity with 2-inch receiver hitch
- 35 mph top speed (configurable to 25 or 15 mph)
- 140-amp peak high-output alternator
- 117-inch extended wheelbase
- EPA Tier 4 emissions compliant, automatic glow plugs
Available Trims
Base
Base
$22,335
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement899cc
ConfigurationInline Triple
Cylinders3
Horsepower23.5 HP
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive BeltYes (CVT belt)
Low RangeYes
Traction SystemSwitch-operated differential lock with three drive modes (turf / 2WD / AWD)
Drive Type2WD/4WD
Power SteeringYes (EPS)
Suspension
FrontIndependent Dual A-Arm
RearDe Dion with Sway Bar
Brakes & Tires
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires25x10-12
Rear Tires25x10-12
Dimensions
Length155"
Width62"
Height76"
Wheelbase117"
Ground Clearance11.7"
Weight & Capacity
Dry Weight2,165 lbs
Seating6 passengers
Fuel Capacity11.5 gal
Towing Capacity2,000 lbs
Payload Capacity2,075 lbs
Cargo BedYes
Bed Capacity1,250 lbs
Bed Dimensions (L×W×H)43.5″ × 54″ × 11.5″
Ownership
Factory Warranty12 months
