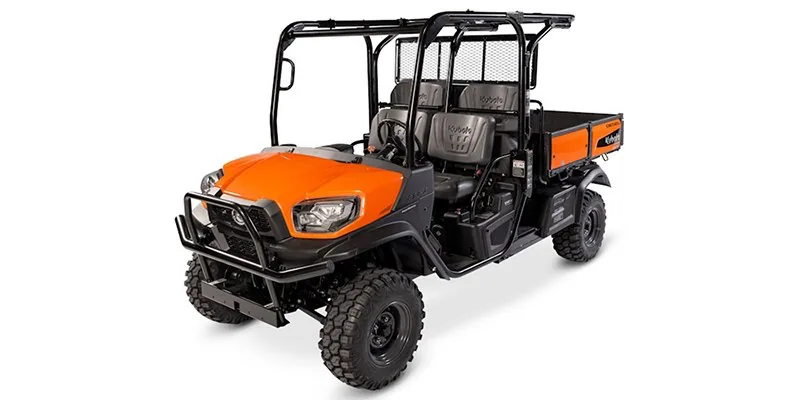

Photo may show a prior model year or a different trim or colorway.
Side-by-SideworkNew for 2026
Kubota · 2026
RTV-X Crew
$22,199 - $22,849
2 trims available
Convertible 2-to-4 passenger diesel utility vehicle
1123cc
Engine
23.3 HP
Power
4
Seats
2WD/4WD
Drive
The Kubota RTV-X Crew features the K-Vertible bed system that converts from a 2-passenger long bed (19.1 cu ft, 1,102 lb capacity) to a 4-passenger short bed (9.9 cu ft, 661 lb capacity) in under a minute without tools.
Key Features
- K-Vertible bed system: 2-seat long bed or 4-seat short bed
- 23.3 HP Kubota 3-cylinder diesel engine
- Variable Hydro Transmission (VHT-X) with Hi/Lo range
- Selectable 2WD/4WD with limited-slip front and locking rear differential
- Independent suspension with 8" travel all around
- 1,102 lb bed capacity (long bed) / 661 lb (short bed)
- 1,300 lb towing capacity
- Hydraulic power steering with tilt wheel
- Hydraulic dump bed in both configurations
- 25 mph top speed
Available Trims
Base
Standard
$22,199
- K-Vertible bed system
- LED headlights
Premium
$22,849+$650
- ProKonvert cargo bed system
- Alloy wheels
- Spray-on bed liner
- Realtree AP Camo option
Full Specifications
Engine & Drivetrain
Displacement1123cc
ConfigurationInline
Cylinders3
Horsepower23.3 HP
Torque51.4 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive BeltNo belt (geared / direct drive)
Low RangeYes
Traction SystemSelectable 4WD with limited-slip front and foot-operated rear differential lock
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontIndependent Double A-Arm
RearIndependent with Coilover Shock
Front Travel8"
Rear Travel8"
Brakes & Tires
Front BrakesHydraulic Disc (Wet)
Rear BrakesHydraulic Disc (Wet)
Front Tires25x10-12
Rear Tires25x10-12
Dimensions
Length142.1"
Width63.2"
Height79.7"
Wheelbase98.2"
Ground Clearance9.4"
Weight & Capacity
Dry Weight2,392 lbs
Seating4 passengers
Fuel Capacity7.9 gal
Towing Capacity1,300 lbs
Payload Capacity1,607 lbs
Cargo BedYes
Bed Capacity1,102 lbs
Bed Dimensions (L×W×H)26″ × 57.7″ × 11.2″
Ownership
Factory Warranty12 months
