Photo may show a prior model year or a different trim or colorway.
Side-by-Sidework
Kubota · 2026

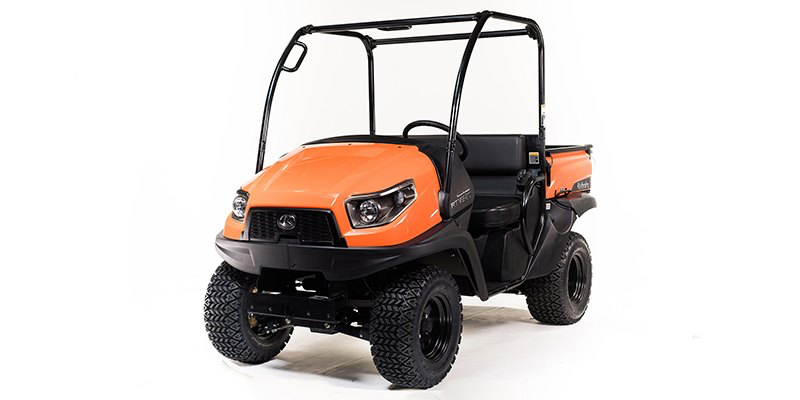

RTV520
$12,999
Compact mid-size utility vehicle built for any terrain
514cc
Engine
17.4 HP
Power
2
Seats
2WD/4WD
Drive
The Kubota RTV520 is a compact mid-size utility vehicle powered by a 17.4 HP liquid-cooled gasoline engine. It features a VHT Plus transmission with single-pedal operation and hill-hold support, making it an easy-to-operate workhorse for property maintenance.
Key Features
- 17.4 HP Kubota liquid-cooled 2-cylinder gasoline engine
- VHT Plus transmission with single-pedal operation
- Hill-hold support for safe operation on slopes
- Selectable 2WD/4WD with differential lock
- 1,168 lb towing capacity
- 441 lb cargo bed with dump capability
- Compact 105" length for tight spaces
- Rack-and-pinion steering
- 4-wheel hydraulic disc brakes (249mm)
- 24.9 mph top speed
Available Trims
Base
Standard
$12,999
Standard configuration
Full Specifications
Engine & Drivetrain
Displacement514cc
ConfigurationInline
Cylinders2
Horsepower17.4 HP
Fuel InjectionYes
CoolingLiquid
Fuel TypeGasoline
TransmissionAutomatic CVT
Drive BeltNo belt (geared / direct drive)
Low RangeYes
Traction SystemSelectable 2WD/4WD with hand-operated rear differential lock
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontIndependent MacPherson Strut
RearFive-Link Semi-Independent
Brakes & Tires
Front BrakesHydraulic Disc (249mm)
Rear BrakesHydraulic Disc (249mm)
Front Tires24x9-12
Rear Tires24x11-12
Dimensions
Length105"
Width54.7"
Height74"
Wheelbase70.9"
Ground Clearance8.9"
Weight & Capacity
Dry Weight1,378 lbs
Curb Weight1,378 lbs
Seating2 passengers
Fuel Capacity5.1 gal
Towing Capacity1,168 lbs
Payload Capacity935 lbs
Cargo BedYes
Bed Capacity441 lbs
Bed Dimensions (L×W×H)33.6″ × 40.6″ × 11.2″
Ownership
Factory Warranty12 months
