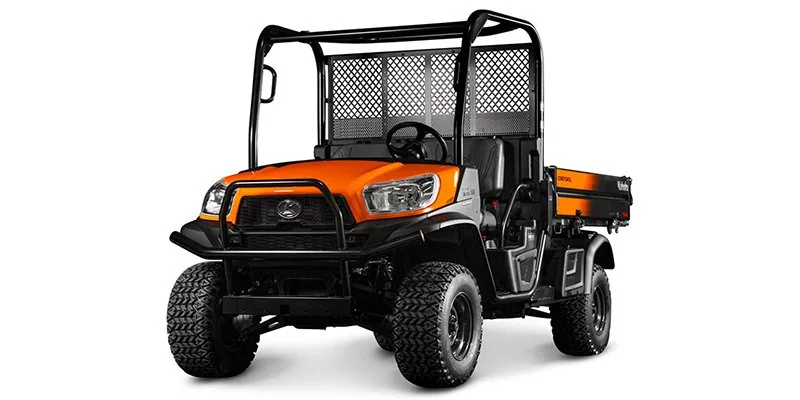

Photo may show a prior model year or a different trim or colorway.
Side-by-SideworkNew for 2026
Kubota · 2026
RTV-X Long Bed
$24,999 - $26,699
2 trims available
6-foot long bed diesel utility vehicle with ProKonvert
1123cc
Engine
23.3 HP
Power
2
Seats
2WD/4WD
Drive
The Kubota RTV-X1130 features a 6-foot long cargo bed with the ProKonvert system, allowing side and tailgate panels to fold down or convert to a flatbed without tools. It offers 26.1 cu ft of bed capacity with a standard hydraulic dump and spray-on bed liner.
Key Features
- 6-foot long steel cargo bed with ProKonvert system
- 23.3 HP Kubota 3-cylinder diesel engine
- Variable Hydro Transmission (VHT-X) with Hi/Lo range
- Selectable 2WD/4WD with limited-slip front and locking rear differential
- 26.1 cu ft bed capacity with standard hydraulic dump
- Standard spray-on bed liner
- 1,300 lb towing capacity with front/rear 2" receivers
- Independent suspension with 8" travel all around
- Hydraulic power steering with tilt wheel
- 25 mph top speed
Available Trims
Base
Standard
$24,999
- ProKonvert cargo bed
- Spray-on bed liner
- LED headlights
Realtree AP Camo
$26,699+$1,700
- Realtree AP camouflage exterior
- Premium brush guard
Full Specifications
Engine & Drivetrain
Displacement1123cc
ConfigurationInline
Cylinders3
Horsepower23.3 HP
Torque51 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive BeltNo belt (geared / direct drive)
Low RangeYes
Traction SystemSelectable 4WD with limited-slip front and foot-operated rear differential lock
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontIndependent Double A-Arm
RearIndependent Double A-Arm
Front Travel8"
Rear Travel8"
Brakes & Tires
Front BrakesInboard Multi-Disc (Wet)
Rear BrakesInboard Multi-Disc (Wet)
Front Tires25x10-12
Rear Tires25x10-12
Dimensions
Length153"
Width63"
Height80"
Wheelbase98.2"
Ground Clearance9.4"
Weight & Capacity
Dry Weight2,355 lbs
Seating2 passengers
Fuel Capacity7.9 gal
Towing Capacity1,300 lbs
Payload Capacity1,212 lbs
Cargo BedYes
Bed Capacity1,212 lbs
Bed Dimensions (L×W×H)72.3″ × 54.5″ × 11.6″
Ownership
Factory Warranty12 months
