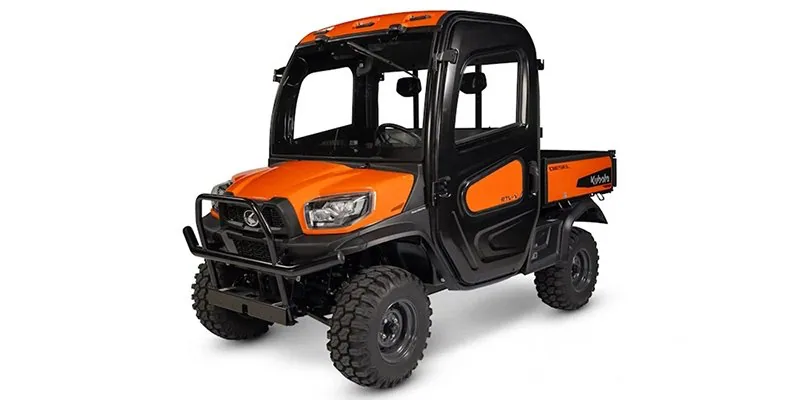

Photo may show a prior model year or a different trim or colorway.
Side-by-SideworkNew for 2026
Kubota · 2026
RTV-X Cab
$27,299 - $30,899
2 trims available
Factory-sealed climate-controlled cab for year-round comfort
1123cc
Engine
23.3 HP
Power
2
Seats
2WD/4WD
Drive
The Kubota RTV-X Cab is a factory-equipped enclosed cab diesel utility vehicle with air conditioning, heat, and defrost. Built on the upgraded RTV-X chassis with a sealed, virtually airtight cabin for all-weather operation.
Key Features
- Factory-installed sealed cab with A/C, heat, and defrost
- 24.8 HP Kubota 3-cylinder diesel engine
- Variable Hydro Transmission (VHT-X) with Hi/Lo range
- Selectable 2WD/4WD with limited-slip front and locking rear differential
- Independent suspension with 8.1" travel all around
- 1,102 lb bed capacity with hydraulic dump
- 1,300 lb towing capacity
- Hydraulic power steering with tilt wheel
- 60/40 folding bench seat
- 25 mph top speed
Available Trims
Base
Standard
$27,299
- Factory-sealed cab with A/C, heat, defrost
- LED headlights
Premium
$30,899+$3,600
- ProKonvert cargo bed system
- Alloy wheels
- Spray-on bed liner
- Premium interior appointments
Full Specifications
Engine & Drivetrain
Displacement1123cc
ConfigurationInline
Cylinders3
Horsepower23.3 HP
Torque51.4 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive BeltNo belt (geared / direct drive)
Low RangeYes
Traction SystemSelectable 4WD with limited-slip front and foot-operated rear differential lock
Drive Type2WD/4WD
Power SteeringNo
Climate ControlHeat + A/C (cabbed trims)
Suspension
FrontIndependent Double A-Arm
RearIndependent with Coilover Shock
Front Travel8.1"
Rear Travel8.1"
Brakes & Tires
Front BrakesHydraulic Disc (Wet)
Rear BrakesHydraulic Disc (Wet)
Front Tires25x10-12
Rear Tires25x10-12
Dimensions
Length122.4"
Width65.4"
Height81.9"
Wheelbase80.5"
Ground Clearance9.9"
Weight & Capacity
Dry Weight2,414 lbs
Seating2 passengers
Fuel Capacity7.9 gal
Towing Capacity1,300 lbs
Payload Capacity1,585 lbs
Cargo BedYes
Bed Capacity1,102 lbs
Bed Dimensions (L×W×H)40.5″ × 57.7″ × 11.2″
Ownership
Factory Warranty12 months
