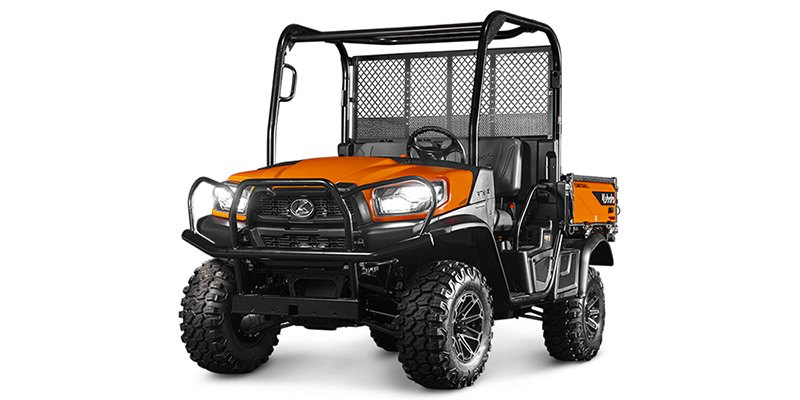

Photo may show a prior model year or a different trim or colorway.
Side-by-SideworkNew for 2026
Kubota · 2026
RTV-X
$17,199 - $20,099
3 trims available
North America's #1-Selling Diesel Utility Vehicle
1123cc
Engine
23.3 HP
Power
2
Seats
2WD/4WD
Drive
The Kubota RTV-X is the redesigned successor to the legendary RTV-X900, featuring a 24.8 HP Kubota diesel engine, variable hydrostatic transmission (VHT-X), independent 4-wheel suspension, and a 15.2 cu ft steel cargo bed with hydraulic dump.
Key Features
- 24.8 HP Kubota 3-cylinder diesel engine
- Variable Hydro Transmission (VHT-X) with Hi/Lo range
- Selectable 2WD/4WD with limited-slip front and locking rear differential
- Independent double A-arm suspension with 8" travel all around
- 1,102 lb bed capacity with hydraulic dump
- 1,300 lb towing capacity with front/rear 2" receivers
- Hydraulic power steering with tilt wheel
- LED headlights
- Full-length skid plate standard
- 25 mph top speed
Available Trims
Base
Basic
$17,199
Standard configuration
Standard
$19,199+$2,000
- LED high-beam headlights
- Upgraded interior trim
Premium
$20,099+$2,900
- ProKonvert cargo bed system
- Alloy wheels
- HDMP tires
- Spray-on bed liner
Full Specifications
Engine & Drivetrain
Displacement1123cc
ConfigurationInline
Cylinders3
Horsepower23.3 HP
Torque51.4 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive BeltNo belt (geared / direct drive)
Low RangeYes
Traction SystemSelectable 4WD with limited-slip front and foot-operated rear differential lock
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontIndependent Double A-Arm
RearIndependent with Coilover Shock
Front Travel8"
Rear Travel8"
Brakes & Tires
Front BrakesHydraulic Disc (Wet)
Rear BrakesHydraulic Disc (Wet)
Front Tires25x10-12
Rear Tires25x10-12
Dimensions
Length122.4"
Width63.2"
Height79.5"
Wheelbase80.5"
Ground Clearance10.3"
Weight & Capacity
Dry Weight2,050 lbs
Curb Weight2,072 lbs
Seating2 passengers
Fuel Capacity7.9 gal
Towing Capacity1,300 lbs
Payload Capacity1,499 lbs
Cargo BedYes
Bed Capacity1,102 lbs
Bed Dimensions (L×W×H)40.5″ × 57.7″ × 11.2″
Ownership
Factory Warranty12 months
