Side-by-Sidework
John Deere · 2026
Gator XUV865M Diesel
$21,949 - $42,199
4 trims available
Full-size diesel crossover with superior low-end torque
854cc
Engine
22.8 HP
Power
3
Seats
2WD/4WD
Drive
The John Deere Gator XUV865M Diesel is a full-size crossover utility vehicle powered by an 854cc 3-cylinder diesel engine delivering strong low-end torque. Available in open-station and enclosed HVAC cab configurations with 4,000 lbs towing capacity.
Key Features
- 22.8 HP 854cc 3-cylinder diesel engine
- 36.9 lb-ft of torque for heavy-duty work
- 4,000 lb towing capacity
- 1,000 lb cargo bed capacity
- Electric Power Steering (EPS) standard
- Enclosed HVAC cab with Heat + A/C available
- R Signature Edition with leather seats and touchscreen
- Diesel fuel economy for extended range
Available Trims
Base
865M (Open Station, EPS)
$21,949
- Electric Power Steering (EPS)
- Maxxis Bighorn 2.0 tires
- Open ROPS station

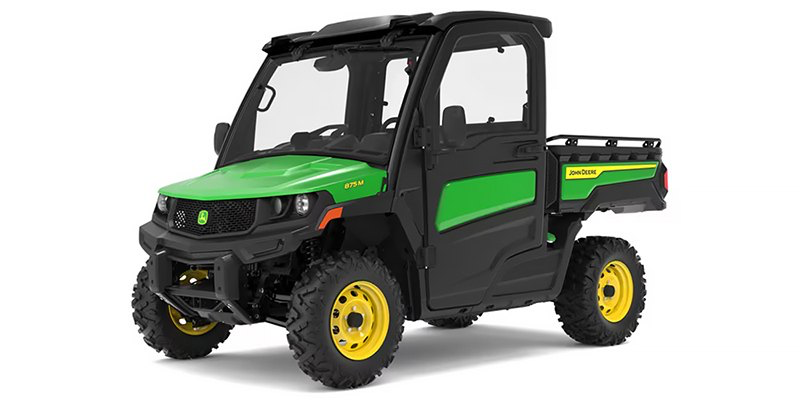

865M HVAC Cab
$31,449+$9,500
- Electric Power Steering (EPS)
- Enclosed cab with Heat + A/C (HVAC)
- Roll-down windows
- Fully opening windshield

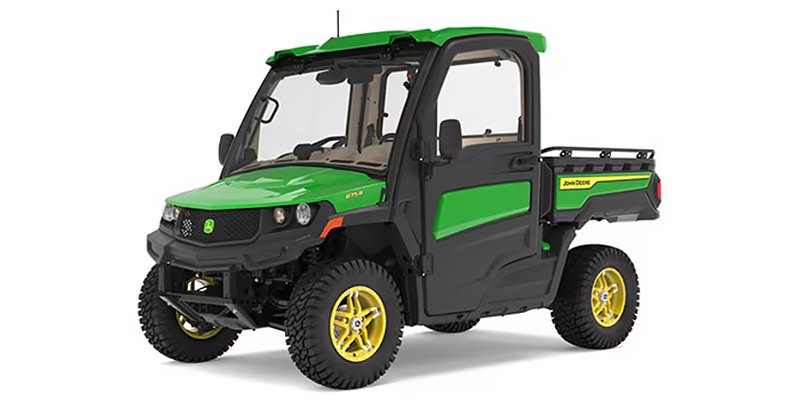

865R Premium Cab
$35,449+$13,500
- Electric Power Steering (EPS)
- Premium HVAC cab with Heat + A/C
- LED headlights
- Power cargo box lift
- Alloy wheels

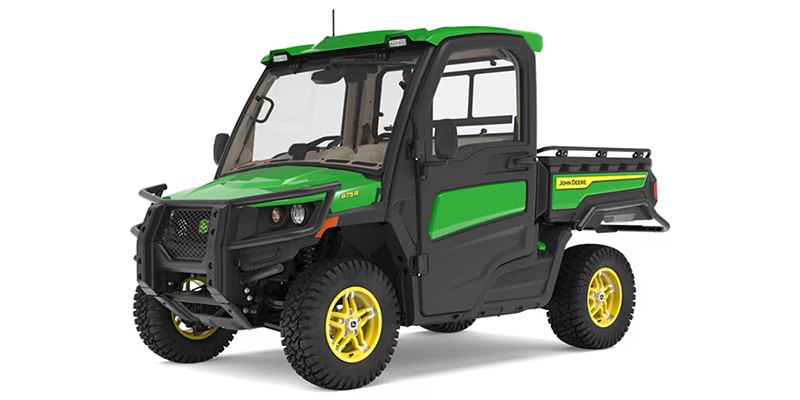

865R Signature Edition
$42,199+$20,250
- Electric Power Steering (EPS)
- Ultimate HVAC cab with Heat + A/C
- Genuine leather seats
- 6.4" touchscreen infotainment with 7 speakers
- Apple CarPlay and Android Auto
- SiriusXM satellite radio
- Rear-facing camera
- Bumper Pro Brush Guard
- Roof-mounted LED driving lights
- Rear fender flares and guards
- Alloy wheels
Full Specifications
Engine & Drivetrain
Displacement854cc
ConfigurationInline
Cylinders3
Horsepower22.8 HP
Torque36.9 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive Type2WD/4WD
Power SteeringYes (EPS)
Climate ControlHeat + A/C (cabbed trims)
Suspension
FrontDual A-Arm Independent
RearDual A-Arm Independent with Sway Bar
Front Travel8"
Rear Travel9"
Brakes & Tires
Front BrakesHydraulic Disc (Twin Piston)
Rear BrakesHydraulic Disc
Front Tires27x9-R14
Rear Tires27x11-R14
Dimensions
Length127"
Width63.7"
Height78"
Wheelbase84.5"
Ground Clearance11.2"
Weight & Capacity
Curb Weight1,932 lbs
Seating3 passengers
Fuel Capacity11.2 gal
Towing Capacity4,000 lbs
Payload Capacity1,474 lbs
Cargo BedYes
Bed Capacity1,000 lbs
