Side-by-Sidework
Kubota · 2026

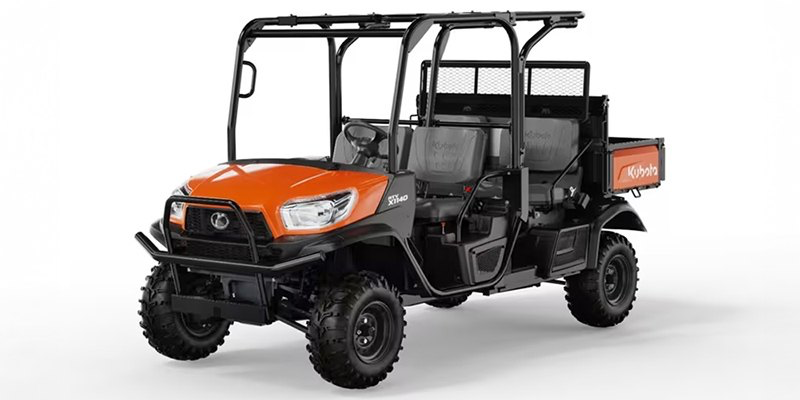

RTV-X1140
$20,499 - $22,199
2 trims available
Convertible crew diesel UTV with class-leading ground clearance
1123cc
Engine
24.8 HP
Power
4
Seats
2WD/4WD
Drive
The Kubota RTV-X1140 features the K-Vertible system for quick 2-to-4 passenger conversion and leads its class with 10.8" ground clearance. Available as a 2-seat long bed (19.1 cu ft, 1,102 lb) or 4-seat short bed (9.9 cu ft, 661 lb) configuration.
Key Features
- K-Vertible system converts between 2-seat and 4-seat configurations
- 24.8 HP Kubota D1105 3-cylinder diesel engine
- 10.8" ground clearance (class-leading)
- Variable Hydro Transmission (VHT-X) with Hi/Lo range
- Selectable 2WD/4WD with limited-slip front and locking rear differential
- Hydraulic dump bed in both seating configurations
- 1,300 lb towing capacity
- Independent suspension with 8" travel all around
- Hydraulic power steering with tilt wheel
- 25 mph top speed
Available Trims
Base
Standard
$20,499
- K-Vertible bed system
- LED headlights
Crew
$22,199+$1,700
- LED high-beam headlights
- Split design LED headlight assembly
- Enhanced trim package
Full Specifications
Engine & Drivetrain
Displacement1123cc
ConfigurationInline
Cylinders3
Horsepower24.8 HP
Torque52.7 lb-ft
Fuel InjectionYes
CoolingLiquid
Fuel TypeDiesel
TransmissionAutomatic CVT
Drive Type2WD/4WD
Power SteeringNo
Suspension
FrontIndependent Double A-Arm
RearIndependent Double A-Arm
Front Travel8"
Rear Travel8"
Brakes & Tires
Front BrakesInboard Multi-Disc (Wet)
Rear BrakesInboard Multi-Disc (Wet)
Front Tires25x10-12
Rear Tires25x10-12
Dimensions
Length142.1"
Width63.2"
Height79.7"
Wheelbase98.2"
Ground Clearance10.8"
Weight & Capacity
Dry Weight2,370 lbs
Curb Weight2,392 lbs
Seating4 passengers
Fuel Capacity7.9 gal
Towing Capacity1,300 lbs
Payload Capacity1,607 lbs
Cargo BedYes
Bed Capacity1,102 lbs
